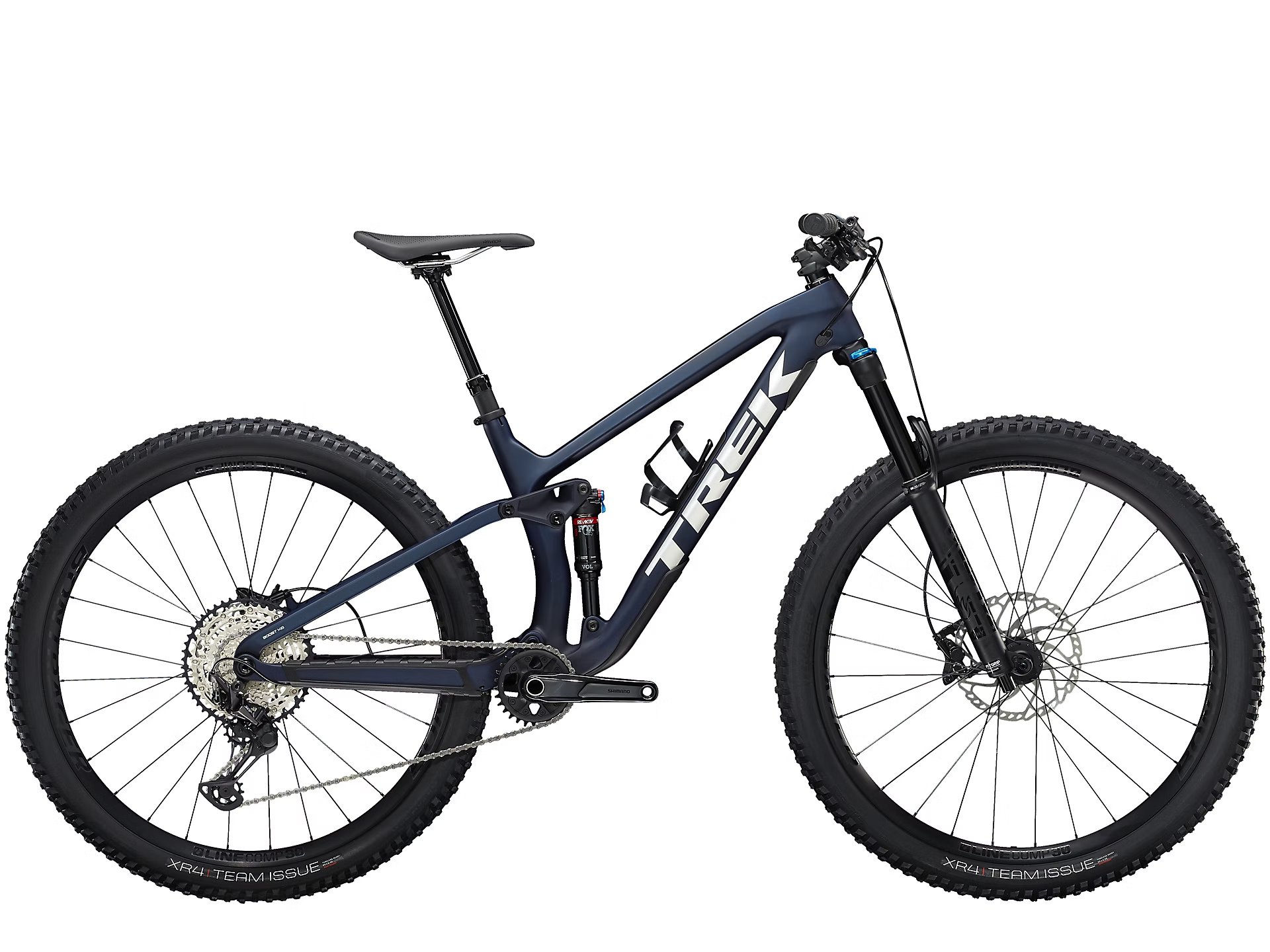

Trek Fuel EX 9.7 Matte Carbon Blue Smoke 2022

Frameset:
Frame: OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Frame: OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
“*Shock: Size: XS , S
Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm”
“: Size: S , M , ML , L , XL
Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 55 mm”
Wheels:
Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
Skewer rear: Bontrager Switch thru-axle, removable lever
“*Tyre: Size: XS , S
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 27.5×2.50″””
“: Size: S , M , ML , L , XL
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50″””
“*Tyre part: Size: XS , S , M , ML , L , XL
Bontrager TLR sealant, 180 ml/6 oz”
“: Size: XS , S , M , ML , L , XL
Bontrager TLR valve, 50 mm”
Rim strip: Bontrager TLR
Drivetrain:
Shifter: Shimano SLX M7100, 12-speed
Rear derailleur: Shimano XT M8100, long cage, 51T max cog
“*Crank: Size: XS , S , M , ML , L
Shimano MT611, 30T steel ring, alloy spider, Boost, 170 mm length”
“: Size: XL
Shimano MT611, 30T steel ring, alloy spider, Boost, 175 mm length”
Bottom bracket: Shimano MT500, 92 mm, PressFit
Cassette: Shimano SLX M7100, 10-51, 12-speed
Chain: Shimano SLX M7100, 12-speed
Components:
Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width
“*Seatpost: Size: XS , S
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length”
“: Size: M , ML , L , XL
Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length”
“*Handlebar: Size: XS , S
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width”
“: Size: M , ML , L , XL
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width”
Grips: Bontrager XR Trail Elite, nylon lock-on
“*Stem: Size: XS , S
Bontrager Elite, 35 mm, 0-degree, 35 mm length”
“: Size: M , ML , L , XL
Bontrager Elite, 35 mm, 0-degree, 45 mm length”
Head set: Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8″ top, 1.5″ bottom
Brake: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
“*Brake rotor: Size: XS , S , M , ML , L , XL
Shimano RT66, 6-bolt, 180mm”
“: Size: M , ML , L , XL
Shimano RT66, 6-bolt, 203 mm”
Accessories:
Bag: Bontrager BITS Internal Frame Storage Bag
Weight:
Weight: M – 30.09 lb / 13.65 kg (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
