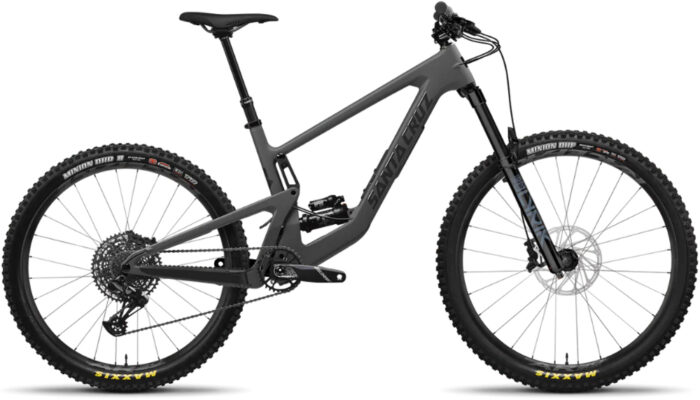

Santa Cruz Bronson 4.1 C R Bike
Ready for Action
Whether you’re hucking it to flat at the bike park, tackling big terrain on an enduro course, or just hitting top speeds on aggressive trails, the Santa Cruz Bronson has the big hit capability you want, and plenty of pedaling efficiency that you need to earn your turns. Using 150mm of tuned VPP™ rear suspension with a 160mm fork and an MX mixed wheel size platform, the Bronson blends big capability with a playful, maneuverable feel. This frame uses the legendarily-durable Santa Cruz C carbon (including a lifetime warranty), and is compatible with both coil and air shocks, while size-specific chainstay lengths on every frame size make sure each rider gets the best out of their Bronson.
The Bronson 4.1 4.1 C R Bike is equipped with SRAM NX Eagle, an affordable, high-performance, wide-range groupset with impressive reliability. The durable and versatile combination of a RockShox Lyri Base 160mm fork and a FOX Float X Performance rear shock team up to make quick work of technical rides. The bike rolls on SRAM MTH 746 and 716 hubs, laced to RaceFace AR Offset 30 rims, with Maxxis Minion tires. To control speed through the trickiest terrain, SRAM G2 R brakes provide impressive braking power, while a RockShox Reverb Stealth Dropper Post makes maneuvering through technical sections a breeze.
Features
- Full-carbon C frame for the ultimate in durability
- MX wheel size blends the playful, agile feel of a 27.5” rear wheel, with the rollover and traction of a 29” wheel up front
- Size-specific chainstay length and geometries, for the best ride for every rider
- 150mm of rear travel with VPP™ suspension system is tuned to soak up the big terrain and technical descents, with the ability to climb back up
- Glovebox provides easy, secure storage in the downtube with a Tool Wallet, Tool Purse, inside of a secured latch panel
- Flip Chip design makes it quick and easy to alter the geometry to suit your riding style
- UDH (Universal Derailleur Hanger) compatibility for use with modern UDH drivetrains
- 73mm threaded bottom bracket shell for added reliability and easy service
| Frame | Carbon C |
|---|---|
| Fork | RockShox Lyrik Base, 160mm |
| Rear Shock | FOX Float X Performance 230×60 |
| Headset | Cane Creek 40 IS Integrated |
| Shifter | SRAM NX Eagle, 12spd |
| Front Derailleur | Nope! |
| Rear Derailleur | SRAM NX Eagle, 12spd |
| Crankset | SRAM Descendant Eagle 148 DUB, 32t |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Chain | SRAM NX Eagle, 12spd |
| Cassette | SRAM PG1230, 12spd, 11-50t |
| Brakes | SRAM G2 R |
| Wheelset | RaceFace ARC Offset 30 Rims, SRAM MTH Hubs – XD Driver, 6-Bolt |
| Tires | Maxxis Minion DHF 29″x2.5″WT, 3C MaxxGrip, EXO, TR (Front) – Maxxis Minion DHR II 27.5″x2.4″, 3C MaxxTerra, EXO, TR (Rear) |
| Handlebar | Burgtec RideWide Alloy Bar, 800mm |
| Stem | Burgtec Enduro MK3 – 42mm |
| Grips | Santa Cruz Bicycles House Grips |
| Seatpost | SDG Tellis Dropper, 31.6 |
| Seatclamp | Bolt-on (36.4mm) |
| Saddle | WTB Silverado Medium CroMo |
| Intended Use | Trail, All-Mountain, Enduro |
| Approximate Weight | 31.55 lbs / 14.31 kg |
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 370 | 380 | 405 | 430 | 460 |
| B: Effective Top Tube | 536 | 570 | 599 | 623 | 653 |
| C: Stack | 594 | 617 | 626 | 635 | 649 |
| D: Reach | 405 | 430 | 455 | 475 | 500 |
| E: BB Height | 344 | 344 | 344 | 344 | 344 |
| F: BB Drop | 10 | 29 | 29 | 29 | 29 |
| G: Head Tube Length | 110 | 100 | 110 | 120 | 135 |
| H: Head Tube Angle | 64.7 ° | 64.7 ° | 64.7 ° | 64.7 ° | 64.7 ° |
| I: Seat Tube Angle | 77.6 ° | 77.2 ° | 77.1 ° | 76.9 ° | 76.7 ° |
| J: Standover Height | 701 | 709 | 731 | 729 | 728 |
| K: Chainstay Length | 427 | 431 | 435 | 438 | 442 |
| L: Wheelbase | 1149 | 1188 | 1221 | 1249 | 1284 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 370 | 380 | 405 | 430 | 460 |
| B: Effective Top Tube | 542 | 575 | 604 | 627 | 657 |
| C: Stack | 595 | 619 | 628 | 637 | 651 |
| D: Reach | 402 | 427 | 452 | 472 | 497 |
| E: BB Height | 341 | 341 | 341 | 341 | 341 |
| F: BB Drop | 13 | 32 | 32 | 32 | 32 |
| G: Head Tube Length | 110 | 100 | 110 | 120 | 135 |
| H: Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| I: Seat Tube Angle | 76.9 ° | 76.7 ° | 76.6 ° | 76.5 ° | 76.4 ° |
| J: Standover Height | 698 | 706 | 727 | 726 | 725 |
| K: Chainstay Length | 432 | 432 | 436 | 439 | 443 |
| L: Wheelbase | 1154 | 1189 | 1222 | 1249 | 1285 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5″ – 5’9″ 165 – 175 cm |
5’9″ – 6’1″ 175 – 185 cm |
6’1″ – 6’5″ 185 – 196 cm |
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 14.6 | 15.0 | 15.9 | 16.9 | 18.1 |
| B: Effective Top Tube | 21.1 | 22.4 | 23.6 | 24.5 | 25.7 |
| C: Stack | 23.4 | 24.3 | 24.6 | 25.0 | 25.6 |
| D: Reach | 15.9 | 16.9 | 17.9 | 18.7 | 19.7 |
| E: BB Height | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| F: BB Drop | 0.4 | 1.1 | 1.1 | 1.1 | 1.1 |
| G: Head Tube Length | 4.3 | 3.9 | 4.3 | 4.7 | 5.3 |
| H: Head Tube Angle | 64.7 ° | 64.7 ° | 64.7 ° | 64.7 ° | 64.7 ° |
| I: Seat Tube Angle | 77.6 ° | 77.2 ° | 77.1 ° | 76.9 ° | 76.7 ° |
| J: Standover Height | 27.6 | 27.9 | 28.8 | 28.7 | 28.7 |
| K: Chainstay Length | 16.8 | 17.0 | 17.1 | 17.2 | 17.4 |
| L: Wheelbase | 45.2 | 46.8 | 48.1 | 49.2 | 50.6 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 14.6 | 15.0 | 15.9 | 16.9 | 18.1 |
| B: Effective Top Tube | 21.3 | 22.6 | 23.8 | 24.7 | 25.9 |
| C: Stack | 23.4 | 24.4 | 24.7 | 25.1 | 25.6 |
| D: Reach | 15.8 | 16.8 | 17.8 | 18.6 | 19.6 |
| E: BB Height | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| F: BB Drop | 0.5 | 1.3 | 1.3 | 1.3 | 1.3 |
| G: Head Tube Length | 4.3 | 3.9 | 4.3 | 4.7 | 5.3 |
| H: Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| I: Seat Tube Angle | 76.9 ° | 76.7 ° | 76.6 ° | 76.5 ° | 76.4 ° |
| J: Standover Height | 27.5 | 27.8 | 28.6 | 28.6 | 28.5 |
| K: Chainstay Length | 17.0 | 17.0 | 17.2 | 17.3 | 17.4 |
| L: Wheelbase | 45.4 | 46.8 | 48.1 | 49.2 | 50.6 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5″ – 5’9″ 165 – 175 cm |
5’9″ – 6’1″ 175 – 185 cm |
6’1″ – 6’5″ 185 – 196 cm |
