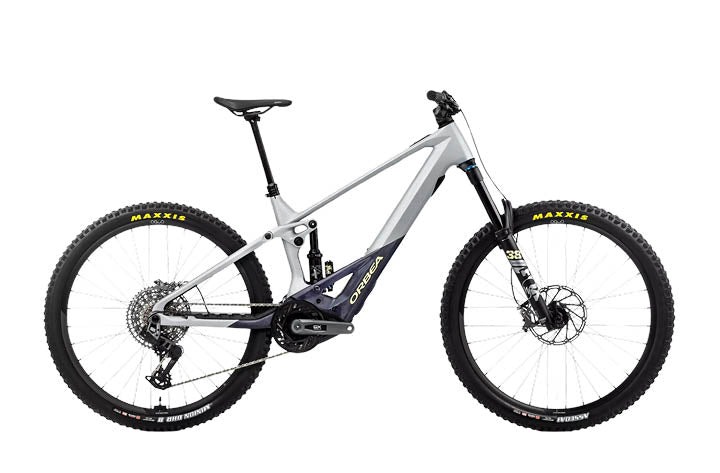

Orbea Wild M11 AXS 20mph E-Bike
Beyond Power
E-bikes are designed to remove many of the barriers that prevent people from enjoying riding. Hills become easier, longer distances feel shorter, and rough conditions feel tamer. With an e-MTB, you’ll be able to conquer more terrain and have more fun riding. The Orbea Wild M11 AXS 20mph E-Bike tames the wildest trails but always feels alive, energetic, and involved rather than the detached, numb ride of many e-bikes. It is an enduro mountain bike that uses 160mm of travel on the front and rear. The frame is made of OMR carbon fiber and features internal cable routing, a secure battery system, integrated frame protection, and a clean cockpit. With the Bosch Performance Line CX Motor, you’ll get up to 20mph of pedal assist so you can conquer any obstacle.
The M11 AXS version of the Orbea Wild comes with a SRAM GX Eagle AXS 12-speed drivetrain. With a 10-52T cassette on the rear, you’ll have no issues climbing the steepest terrain and conquering any trail. SRAM Code Bronze Hydraulic Disc Brakes provide excellent stopping power so you can descend with confidence. OQUO Mountain Control MC32TEAM Power Wheels are paired with Maxxis Assegai and Minion DHR II Tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OC Mountain Control MC21 Dropper Post, you’ll be able to quickly lift and lower your saddle for safer descents with a lower center of gravity and more efficient climbing with a full leg extension.
Features
- OMR Carbon Frame with internal cable routing, a secure battery system, integrated frame protection, and a clean cockpit
- SRAM GX Eagle AXS wireless electronic drivetrain performs exceptionally well under heavy load
- SRAM Code Bronze Hydraulic Disc Brakes provide confidence-inspiring stopping power
- Tubeless-ready rims and tires so you can ditch the tubes for a smoother ride, better traction, and fewer flats
- OC Mountain Control MC21 Dropper Post quickly lifts and lowers your saddle
| Frame | Orbea Wild OMR Carbon, Concentric Boost 12×148 |
|---|---|
| Fork | Fox 38 Float Performance, 160mm Travel, GRIP 3-Pos, QR15x110mm |
| Rear Shock | Fox Float X Performance Trunnion, 2-Pos Adjust, 205x65mm |
| Headset | Alloy 1-1/2″ Black Oxidated Bearing |
| Shifters | SRAM AXS Pod, 12-Speed |
| Front Derailleur | SRAbsolutely Not |
| Rear Derailleur | SRAM GX Eagle AXS, 12-Speed |
| Crankset | SRAM GX for Bosch, SRAM XX Direct Mount 34T |
| Bottom Bracket | – |
| Chain | SRAM GX Eagle, 12-Speed |
| Cassette | SRAM GX-1275 Eagle, 10-52T |
| Brakes | SRAM Code Bronze Hydraulic Disc |
| Wheelset | OQUO Mountain Control MC32TEAM Power |
| Tires | Maxxis Assegai 29×2.5″ WT FB 120 TPI 3C MaxxTerra EXO+ TR / Minion DHRII 29×2.4″ WT FB 120 TPI 3C MaxxTerra EXO+ TR |
| Handlebar | OC Mountain Control MC20 Alu SL, 20mm Rise, 800mm Wide |
| Stem | OC Mountain Control MC20, 0° |
| Grips/Bar Tape | OC Lock-On |
| Seatpost | OC Mountain Control MC21, 31.6mm |
| Seatclamp | Bolt-Type |
| Saddle | Fizik Aidon 208x145mm Manganese Rail |
| Intended Use | Enduro, All-Mountain |
| Motor | Bosch Performance Line CX BDU3741 |
| Battery | Bosch Powertube 750Wh Horizontal BBP3775 |
| Display | Bosch System Controller BCR3100 |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 415 | 415 | 435 | 460 |
| B: Effective Top Tube | 573 | 595 | 622 | 649 |
| C: Stack | 621 | 630 | 639 | 648 |
| D: Reach | 435 | 455 | 480 | 505 |
| E: BB Height | 353 | 353 | 353 | 353 |
| F: BB Drop | 25 | 25 | 25 | 25 |
| G: Head Tube Length | 110 | 120 | 130 | 140 |
| H: Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| I: Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| J: Standover Height | 700 | 700 | 700 | 700 |
| K: Chainstay Length | 448 | 448 | 448 | 448 |
| L: Wheelbase | 1223 | 1247 | 1277 | 1306 |
| Crank Arm Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem Length | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1″ – 68.9″ 150 – 175 cm |
63″ – 72.8″ 160 – 185 cm |
66.9″ – 76.8″ 170 – 195 cm |
70.9″ – 80.7″ 180 – 205 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 16.3 | 16.3 | 17.1 | 18.1 |
| B: Effective Top Tube | 22.6 | 23.4 | 24.5 | 25.6 |
| C: Stack | 24.4 | 24.8 | 25.2 | 25.5 |
| D: Reach | 17.1 | 17.9 | 18.9 | 19.9 |
| E: BB Height | 13.9 | 13.9 | 13.9 | 13.9 |
| F: BB Drop | 1.0 | 1.0 | 1.0 | 1.0 |
| G: Head Tube Length | 4.3 | 4.7 | 5.1 | 5.5 |
| H: Head Tube Angle | 64.0 ° | 64.0 ° | 64.0 ° | 64.0 ° |
| I: Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| J: Standover Height | 27.6 | 27.6 | 27.6 | 27.6 |
| K: Chainstay Length | 17.6 | 17.6 | 17.6 | 17.6 |
| L: Wheelbase | 48.1 | 49.1 | 50.3 | 51.4 |
| Crank Arm Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem Length | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1″ – 68.9″ 150 – 175 cm |
63″ – 72.8″ 160 – 185 cm |
66.9″ – 76.8″ 170 – 195 cm |
70.9″ – 80.7″ 180 – 205 cm |
