| 01. FRAME | Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link |
| 02. SIZES | S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
| 03. REAR SHOCK | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| 04. SHOCK SETTINGS | Medium compression, medium rebound, air volume spacer 0.2 |
| 05. FORK | Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| 06. HEADSET | Onoff Saturn tapered for 1-1/8″ to 1-1/2″ head tube, ACB sealed bearings, top 41×30.2x7x45 degreesx45 degrees, bottom 51.9x40x8x45 degreesx45 degrees |
| 07. STEM | Onoff Sulfur FG 30mm 0 degrees, 6061 forged alloy, 31.8mm barbore |
| 08. HANDLEBAR | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degrees backsweep, 5 degrees upsweep, 31.8mm barbore |
| 09. GRIPS | Onoff Diamond, 1lock-on, 135mm |
| 10. SEATPOST | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
| 11. SADDLE | Fizik Terra Aidon X5 145mm |
| 12. FRONT BRAKE | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 13. REAR BRAKE | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 14. BRAKE LEVER | Sram G2 R, tool-free reach adjust |
| 15. RIMS | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| 16. SPOKES | Mavic J-bend duble butted, contactless lacing |
| 17. FRONT HUB | Mavic, Boost 15x110mm, IS 6 bolts |
| 18. REAR HUB | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts |
| 19. FRONT TYRE | Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| 20. REAR TYRE | Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| 21. CRANKSET | Race Face Aeffect ebike, 165mm |
| 22. BOTTOM BRACKET | – |
| 23. CHAINRING | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| 24. PEDALS | – |
| 25. CHAIN | Sram SX Eagle, 12s, Powerlock |
| 26. FRONT DERAILLEUR | – |
| 27. REAR DERAILLEUR | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| 28. SHIFT LEVERS | Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| 29. CASSETTE | Sram PG-1210, 11-50T, 12s |
| 30. MOTOR | Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 |
| 31. BATTERY | Bosch Powertube 750Wh |
| 32. DISPLAY | Bosch Kiox 300 |
| 33. HANGER | M068 |

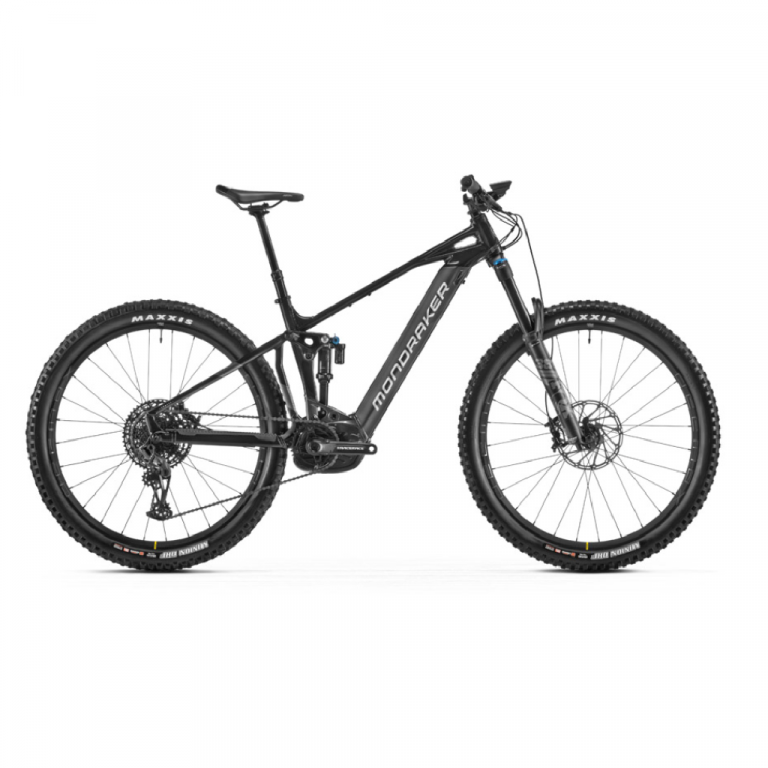

Mondraker Crafty R T
$9,899.00
The CRAFTY, Mondrakers eBike. featuring 29″ wheels and zero suspension system, a dual link design with the shock floating between the two suspension links and compressed from both ends. This makes the rear suspension extremely sensitive on small bumps while still capable of the big hits. With forward geometry powered by a Bosch smart system the Mondraker Crafty will put a smile on your dial.
