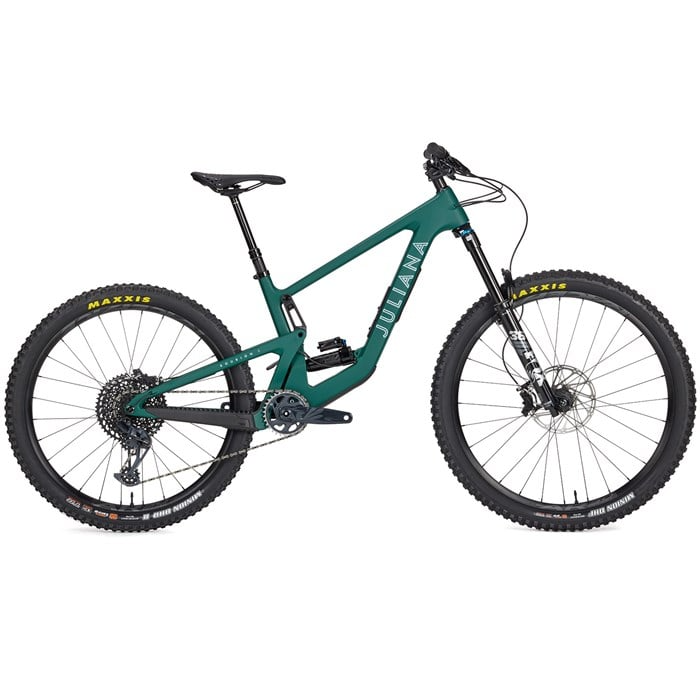

Juliana Roubion 4.1 C R Bike
Every trail, every rider, everywhere.
The Juliana Roubion 4.1 C is a bike to take riders from craggy mountain backcountry singletrack to their familiar local trails, with the capability and versatility to make fun out of any trail. The 150mm of rear suspension with VPP™ (Virtual Pivot Point) technology is tuned for optimal impact absorption, while maintaining critical pedaling efficiency, all with a legendarily simple and reliable design. The MX mixed wheel size platform offers the rollover capability and stability of a 29” front wheel, with a nimble 27.5” rear wheel for a playful, capable bike on any terrain. All of that with a Glovebox internal storage system for storing that mid-ride burrito—what else can a rider ask for?
The Juliana Roubion 4.1 C R Bike is outfitted with a RockShox Lyrik Base 160mm fork with a FOX Float X Performance rear shock to absorb the gnarliest terrain. The SRAM NX Eagle drivetrain offers an ultra-wide gear range and accurate shifting without breaking the bank. Keeping things rolling is a pair of RaceFace AR Offset rims with SRAM MTH 746/716 hubs and the classic Maxxis Minion DHF & DHR tire combination. Four-piston SRAM G2 R brakes have the power to slow you down no matter how tricky the descent becomes, with an SDG Tellis Dropper Post for the steepest terrain.
Features
- C carbon frame for classic durability and a highly-tuned ride, at a lower cost than their top-end CC frames
- Efficient 150mm rear travel with VPP™ suspension system tuned for chunky trails with versatile pedaling efficiency
- Flip Chip design allows for easy adjustment between High and Low settings on the lower suspension link, to easily customize suspension feel for rider preference or conditions
- Optimized for a 160mm suspension fork balancing bit hit absorption with nimble versatility
- Glovebox lets you securely store your ride essentials beneath a securely-latched panel in the downtube, with an included Tool Wallet and Tube Purse for easy organization
- 73mm threaded bottom bracket shell for added reliability and easy service
| Frame | Carbon C |
|---|---|
| Fork | RockShox Lyrik Base – 160mm |
| Rear Shock | FOX Float X Performance – 230×60 |
| Headset | FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated |
| Shifter | SRAM NX Eagle – 12-speed |
| Front Derailleur | Nope! |
| Rear Derailleur | SRAM NX Eagle – 12-speed |
| Crankset | SRAM Descendant Eagle DUB – 32t |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Chain | SRAM NX Eagle – 12-speed |
| Cassette | SRAM PG1230 – 10-50t |
| Brakes | SRAM G2 R |
| Wheelset | SRAM MTH 746/714 Boost hubs, RaceFace AR Offset 30 Rims |
| Tires | Maxxis Minion DHF 29″x2.5″ WT, 3C MaxxGrip, EXO (Front) – Maxxis Minion DHR II 27.5″x2.4″, 3C MaxxTerra, EXO (Rear) |
| Handlebar | Burgtec RideWide Alloy Bar- 800mm |
| Stem | Burgtec Enduro MK3 – 42mm |
| Grips | Juliana House Grips |
| Seatpost | SDG Tellis Dropper – 31.6 |
| Seatclamp | Bolt-on |
| Saddle | Juliana Segundo Saddle or Juliana Primiero Saddle |
| Intended Use | Trail, All-Mountain |
| Approximate Weight | 32.97 lbs / 14.95 kg |
Note: Components are subject to change without notice.
| Size | XS | Small | Medium |
|---|---|---|---|
| A: Seat Tube Length | 370 | 380 | 405 |
| B: Effective Top Tube | 536 | 570 | 599 |
| C: Stack | 594 | 617 | 626 |
| D: Reach | 405 | 430 | 455 |
| E: BB Height | 344 | 344 | 344 |
| F: BB Drop | – | – | – |
| G: Head Tube Length | 110 | 100 | 110 |
| H: Head Tube Angle | 64.7 ° | 64.7 ° | 64.7 ° |
| I: Seat Tube Angle | 77.6 ° | 77.2 ° | 77.1 ° |
| J: Standover Height | 701 | 709 | 731 |
| K: Chainstay Length | – | – | – |
| L: Wheelbase | 1149 | 1188 | 1221 |
| Crank Arm Length | N/A mm | N/A mm | N/A mm |
| Stem Length | 42 mm | 42 mm | 42 mm |
| Handlebar Width | N/A mm | N/A mm | N/A mm |
| Frame Size | XS | Small | Medium |
|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5″ – 5’9″ 165 – 175 cm |
| Size | XS | Small | Medium |
|---|---|---|---|
| A: Seat Tube Length | 14.6 | 15.0 | 15.9 |
| B: Effective Top Tube | 21.1 | 22.4 | 23.6 |
| C: Stack | 23.4 | 24.3 | 24.6 |
| D: Reach | 15.9 | 16.9 | 17.9 |
| E: BB Height | 13.5 | 13.5 | 13.5 |
| F: BB Drop | – | – | – |
| G: Head Tube Length | 4.3 | 3.9 | 4.3 |
| H: Head Tube Angle | 64.7 ° | 64.7 ° | 64.7 ° |
| I: Seat Tube Angle | 77.6 ° | 77.2 ° | 77.1 ° |
| J: Standover Height | 27.6 | 27.9 | 28.8 |
| K: Chainstay Length | – | – | – |
| L: Wheelbase | 45.2 | 46.8 | 48.1 |
| Crank Arm Length | N/A mm | N/A mm | N/a mm |
| Stem Length | 42 mm | 42 mm | 42 mm |
| Handlebar Width | N/A mm | N/A mm | N/A mm |
| Frame Size | XS | Small | Medium |
|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5″ – 5’9″ 165 – 175 cm |
