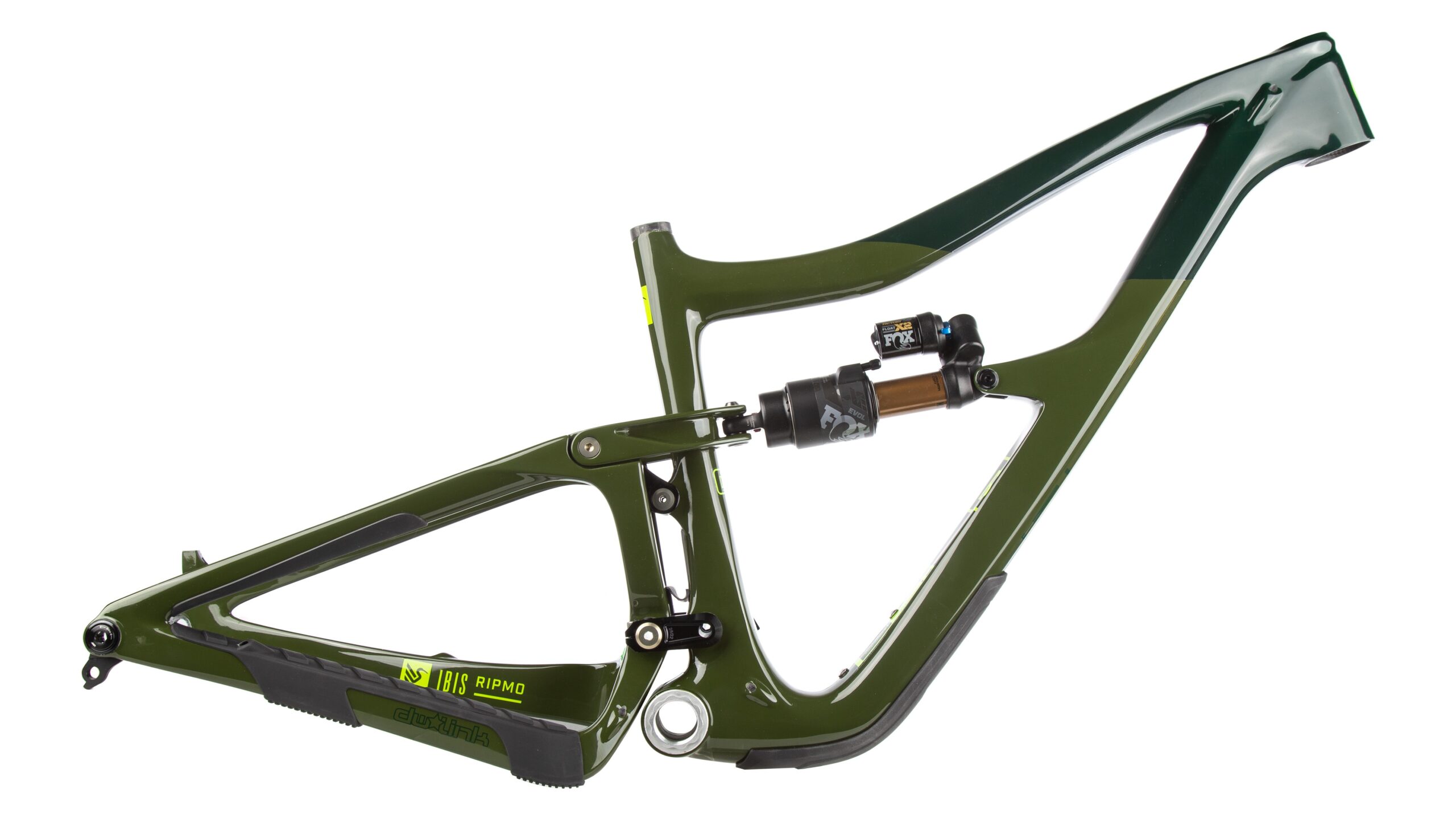

Ibis Ripmo 2 Frameset 2023
Award-Winning Performance
Mountain biking is all about having fun out on the trails. With an all-mountain bike, you’ll be able to conquer the steepest descents and still climb back up to the top to do it all over again. The Ibis Ripmo SLX Bike is powered by DW-Link suspension for an unparalleled combination of climbing efficiency and downhill performance. The carbon frame uses 147mm of travel on the rear and 160mm of travel on the front. The frame also features modern geometry with a steep, 76° seat tube angle and a rangy but not stratospheric reach, wide tire clearance for up to 2.5″ tires, long dropper post compatibility, and a removable ISCG05 mount.
Features
- Carbon fiber frame with DW-Link suspension
- Fox Float Factory X2 EVOL rear shock provides 147mm of plush suspension travel
- Internal cable routing with carbon fiber tubes molded within
- Wide tire clearance for up to 2.5″ wide tires
| Frame | Carbon Fiber |
|---|---|
| Wheel Size | 29″ (2.5″ Max Tire Width) |
| Fork | 160mm Travel, 44mm Offset Recommended |
| Rear Shock | Fox Float Factory Series, X2 w/ EVOL, 210x55mm |
| Headset Included | – |
| Headtube Diameter | 1.5″ Tapered |
| Front Derailleur Type | No, Just No |
| Bottom Bracket Type | 73mm BSA Threaded |
| Seatpost Diameter | 31.6mm |
| Seat Clamp | Bolt-Type |
| Dropout Style | 12x148mm Boost |
| Accessory Mounts | One Bottle Cage Mount |
| Cable routing | Internal, Carbon Fiber Tubes |
| Intended Use | All-Mountain, Enduro |
| Weight | 6.74 lbs Approximate Weight |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 368 | 406 | 432 | 483 |
| B: Effective Top Tube | 573 | 603 | 632 | 655 |
| C: Stack | 609 | 619 | 628 | 640 |
| D: Reach | 433 | 460 | 475 | 500 |
| E: BB Height | 341 | 341 | 341 | 341 |
| F: BB Drop | 30 | 30 | 30 | 30 |
| G: Head Tube Length | 90 | 100 | 110 | 120 |
| H: Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| I: Seat Tube Angle | 77 ° | 77 ° | 76 ° | 76 ° |
| J: Standover Height | 703 | 733 | 740 | 752 |
| K: Chainstay Length | 435 | 435 | 435 | 435 |
| L: Wheelbase | 1187 | 1219 | 1238 | 1267 |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’0″ – 5’4″ 152 – 165 cm |
5’4″ – 5’8″ 163 – 175 cm |
5’7″ – 6’1″ 173 – 185 cm |
6’0″ – 6’5″ 183 – 198 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 14.5 | 16.0 | 17.0 | 19.0 |
| B: Effective Top Tube | 22.6 | 23.7 | 24.9 | 25.8 |
| C: Stack | 24.0 | 24.4 | 24.7 | 25.2 |
| D: Reach | 17.0 | 18.1 | 18.7 | 19.7 |
| E: BB Height | 13.4 | 13.4 | 13.4 | 13.4 |
| F: BB Drop | 1.2 | 1.2 | 1.2 | 1.2 |
| G: Head Tube Length | 3.5 | 3.9 | 4.3 | 4.7 |
| H: Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| I: Seat Tube Angle | 77.0 ° | 77.0 ° | 76.0 ° | 76.0 ° |
| J: Standover Height | 27.7 | 28.9 | 29.1 | 29.6 |
| K: Chainstay Length | 17.1 | 17.1 | 17.1 | 17.1 |
| L: Wheelbase | 46.7 | 48.0 | 48.7 | 49.9 |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’0″ – 5’4″ 152 – 165 cm |
5’4″ – 5’8″ 163 – 175 cm |
5’7″ – 6’1″ 173 – 185 cm |
6’0″ – 6’5″ 183 – 198 cm |
