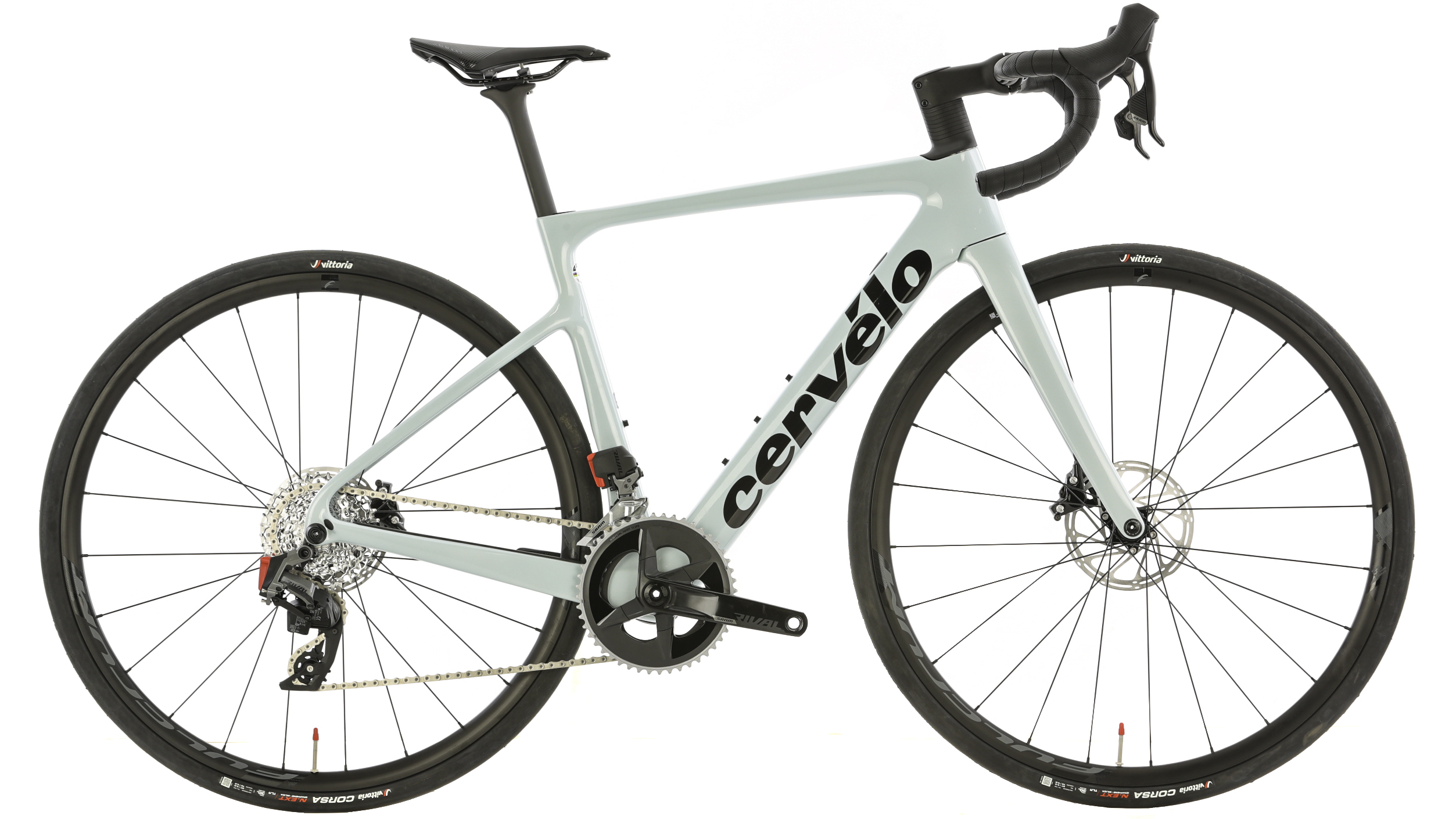

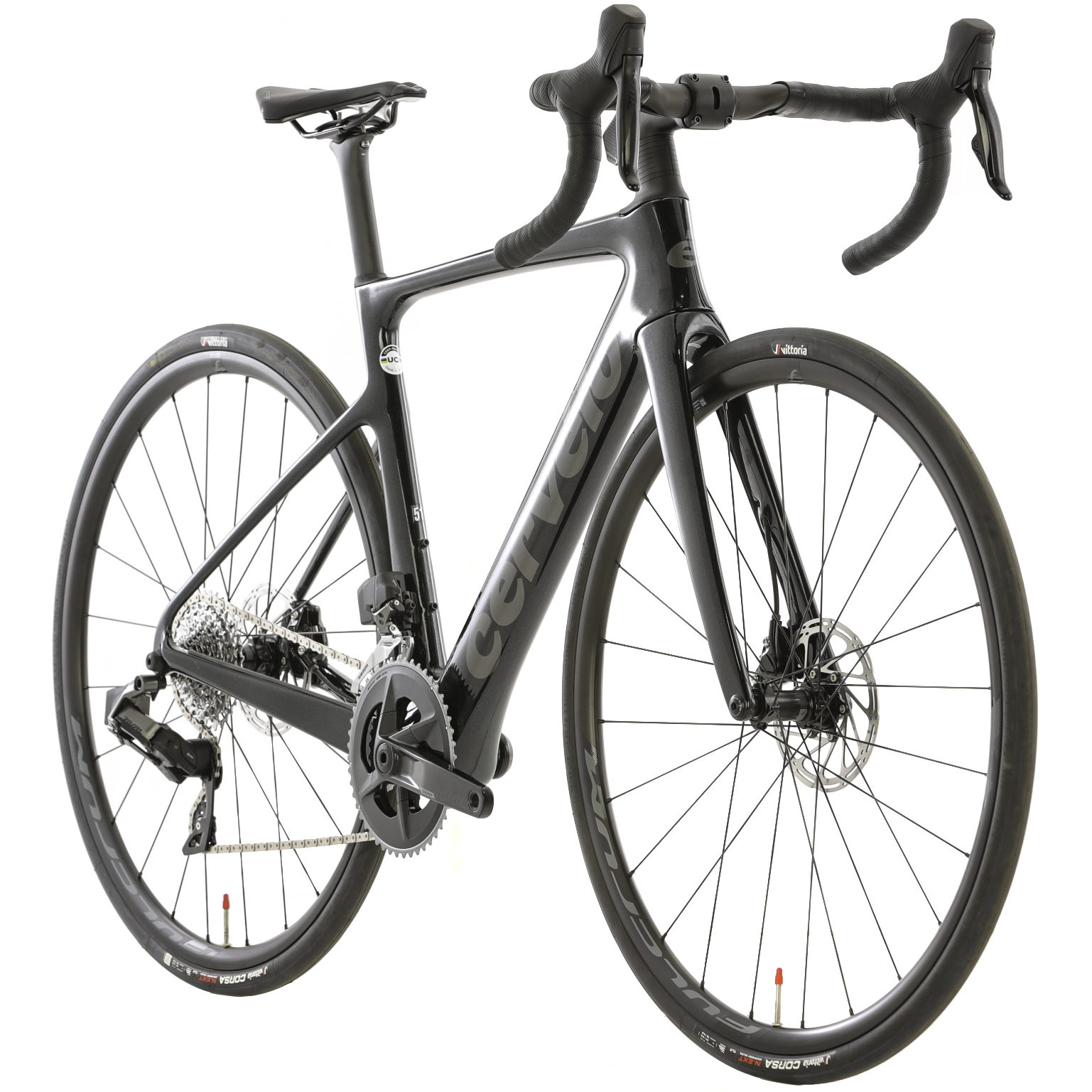

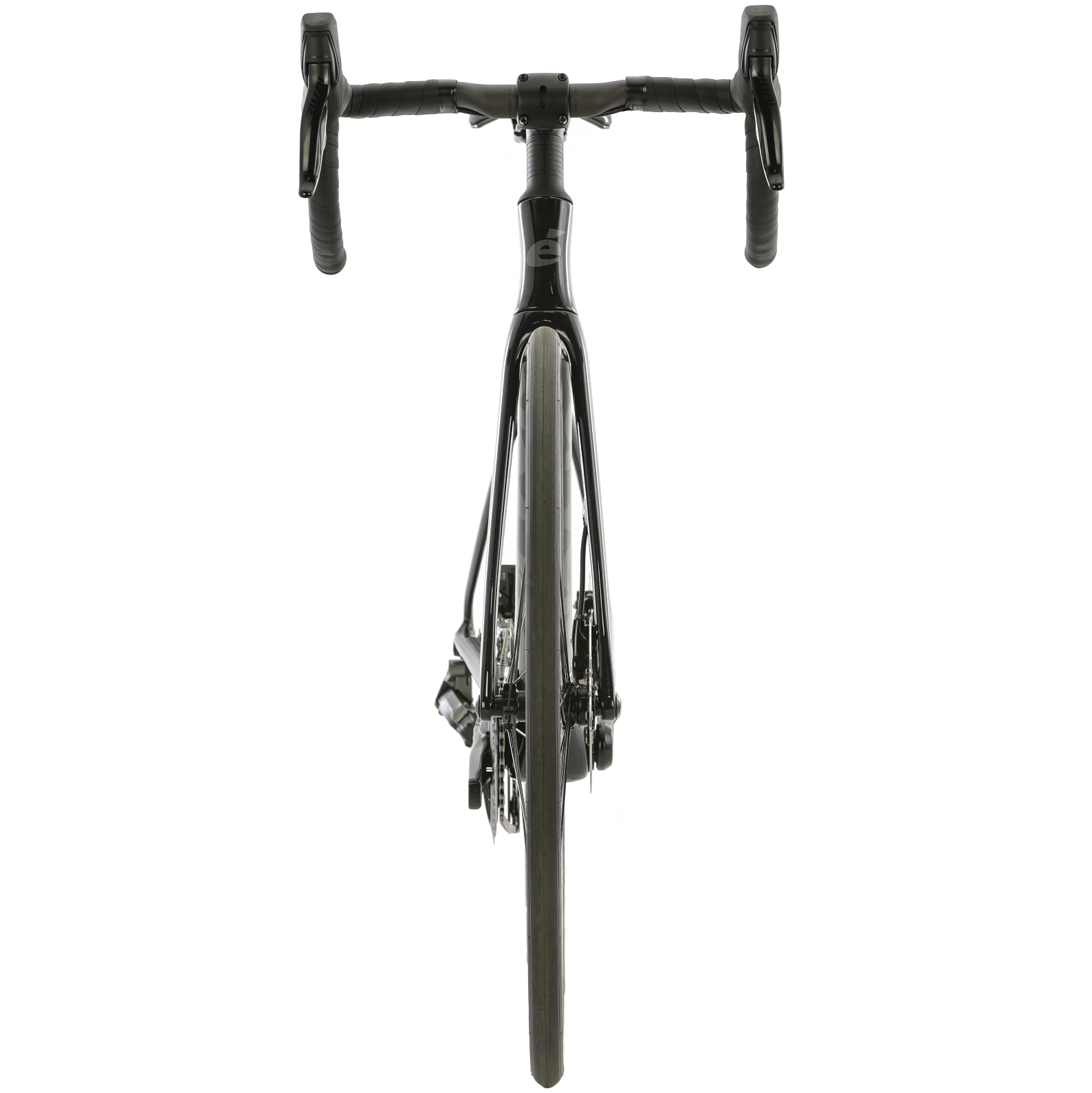

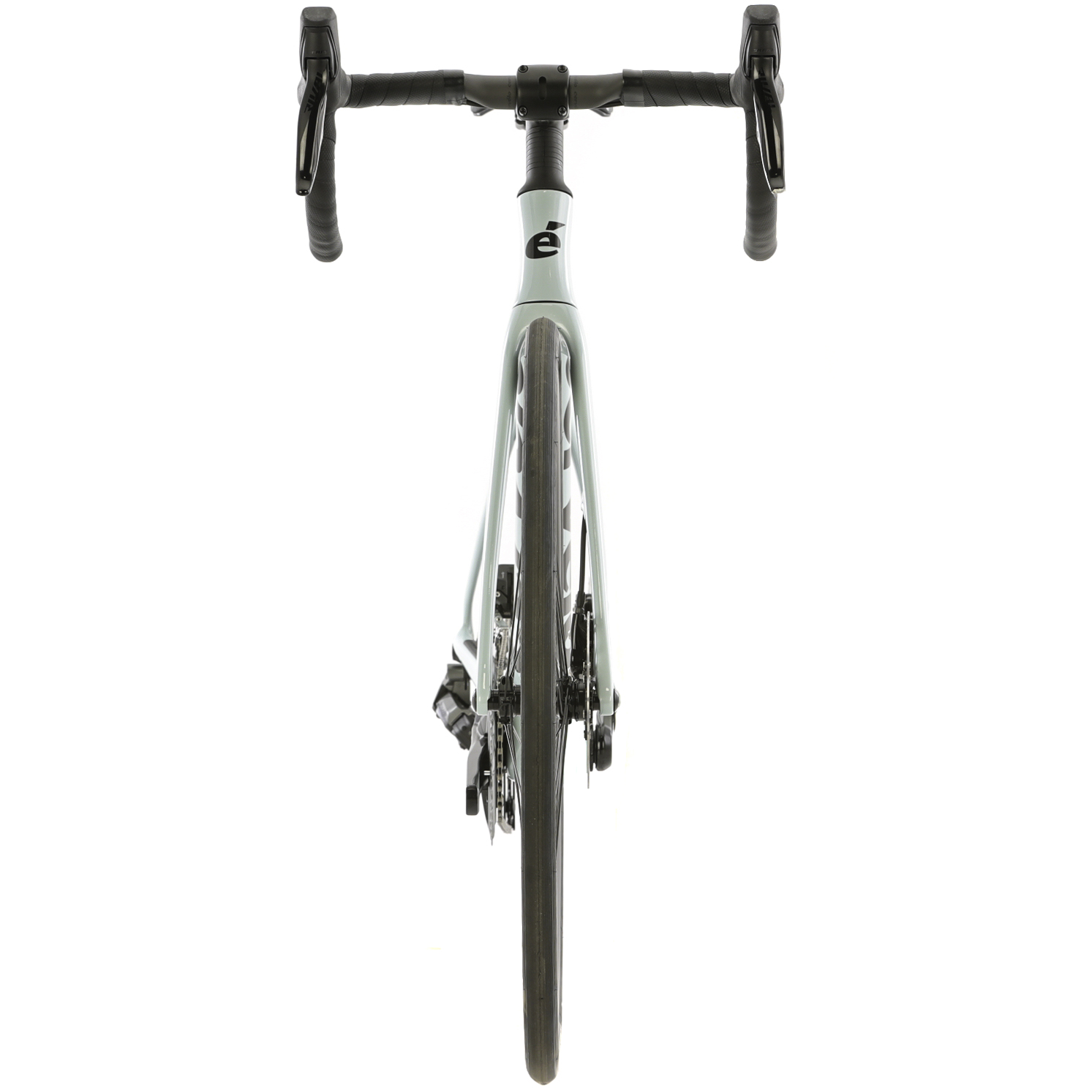

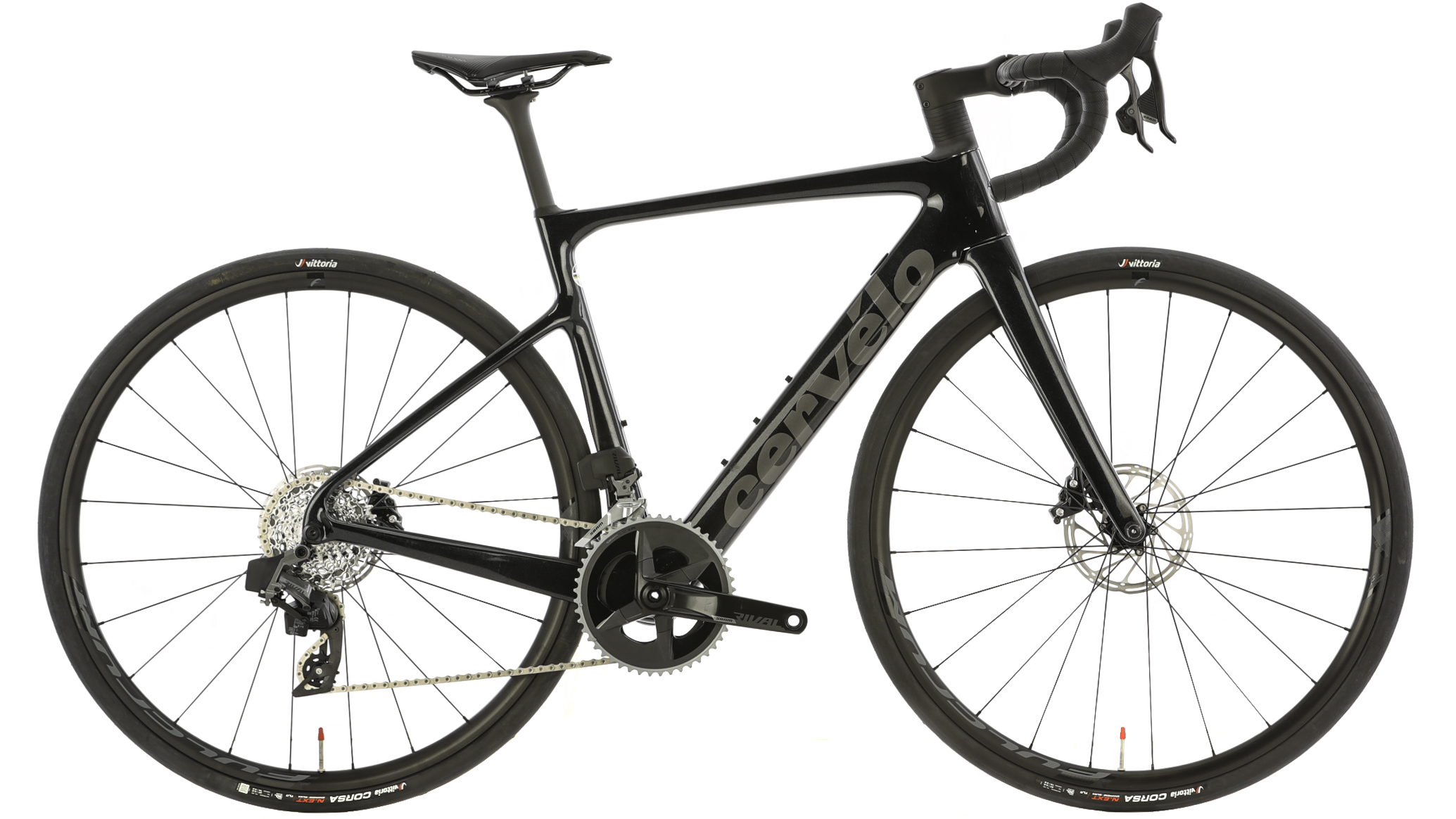

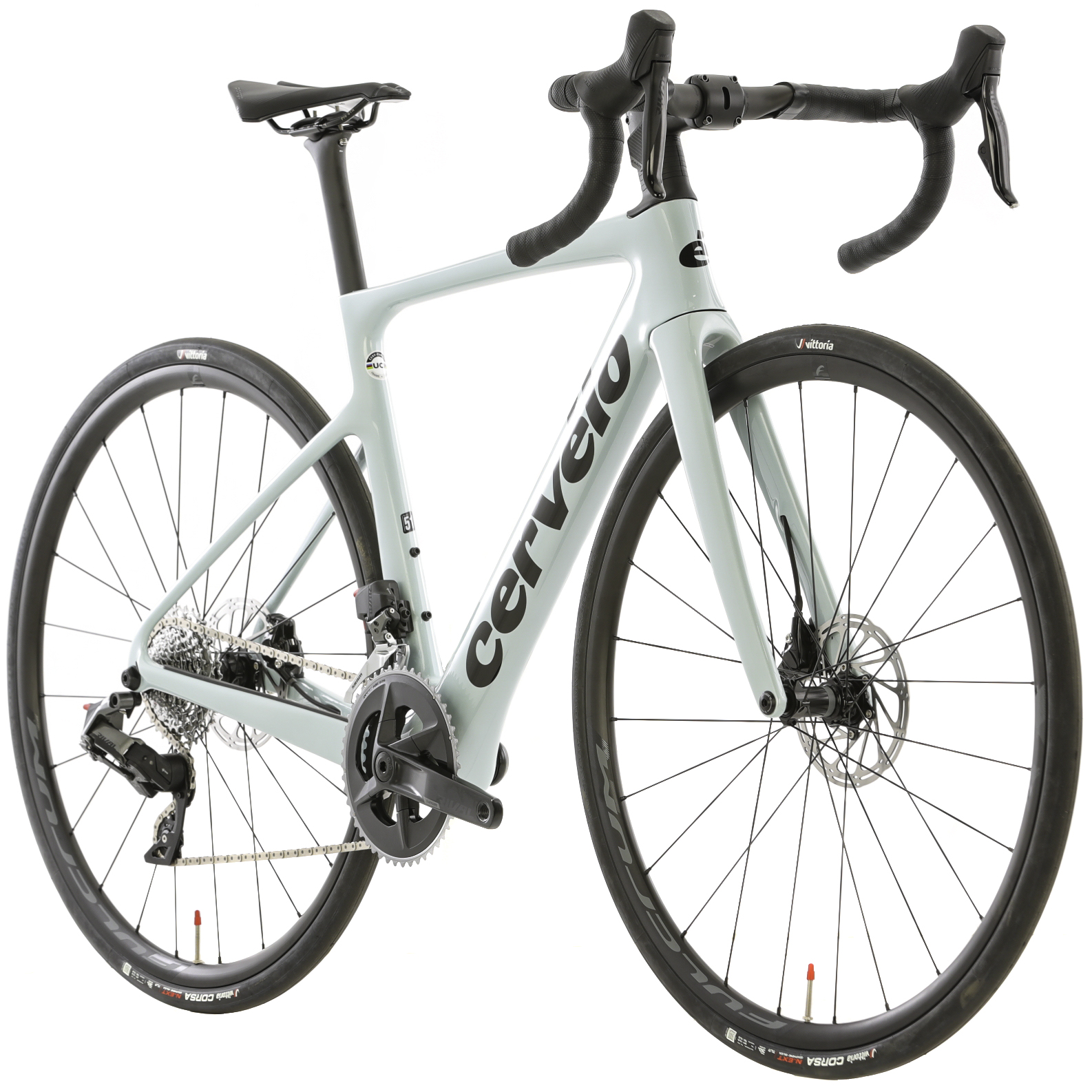

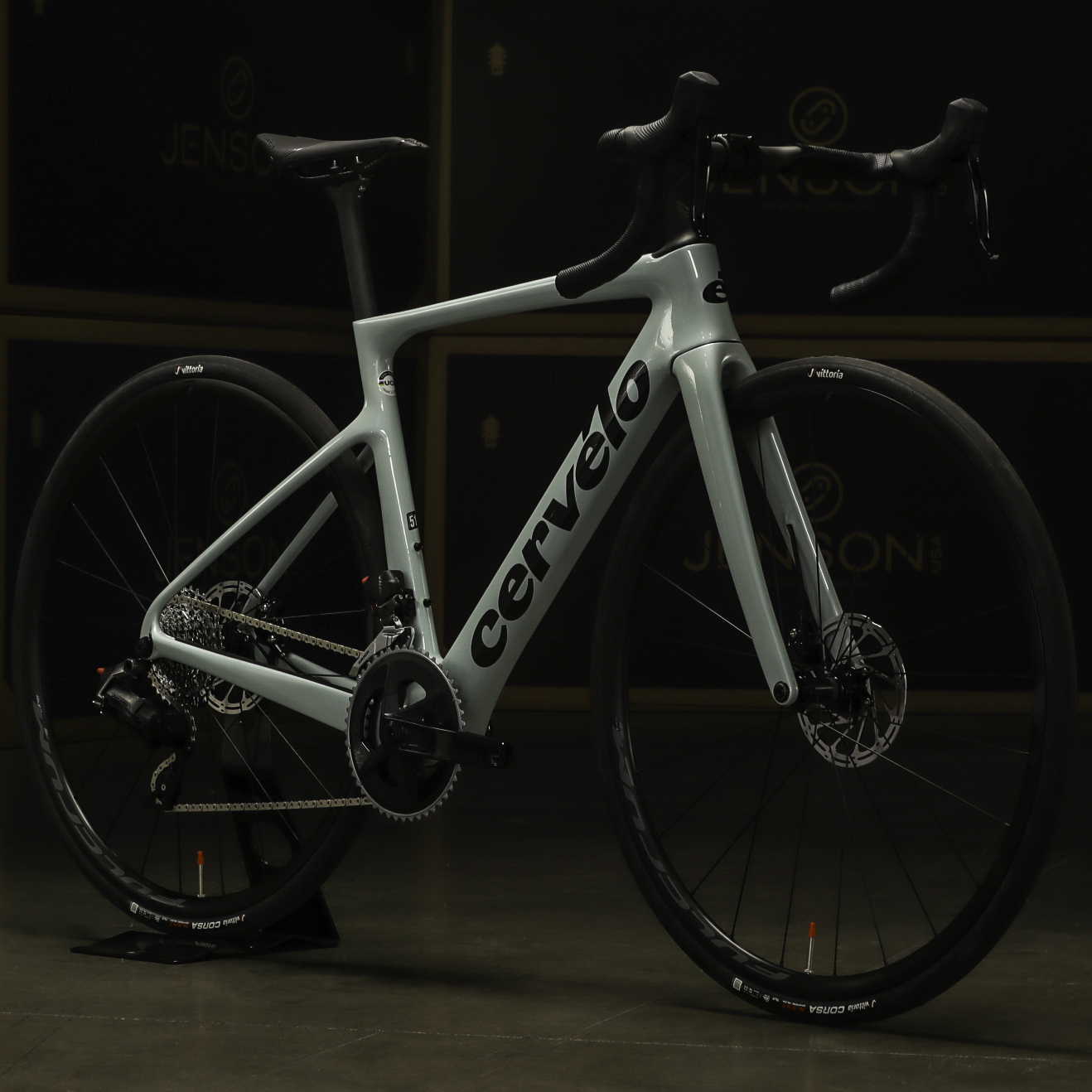

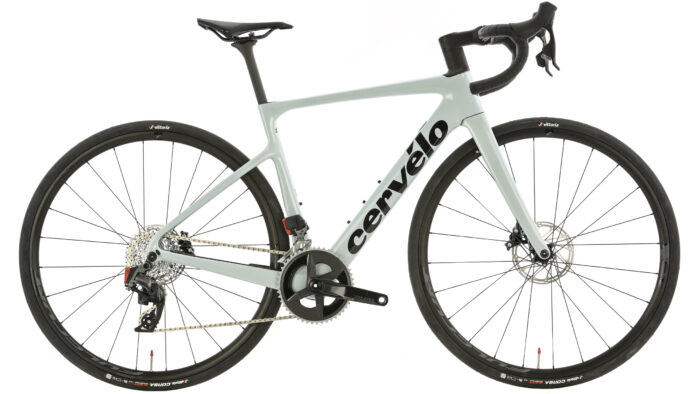

Cervelo Caledonia-5 Rival eTap AXS Bike
Perfect For Longer Rides
Road bikes are all about being lightweight and stiff so you can climb efficiently and sprint without any flex in your frame. The Cervelo Caledonia-5 Rival eTap AXS Bike is made for riders who want a bike to handle smooth tarmac, choppy pavement, a singletrack or two, and even a race. The Caledonia-5 uses a carbon fiber frame and carbon fiber fork. The frame features a removable front derailleur mount that is made from high-strength aluminum alloy and attaches to the frame with two countersunk screws. The frame also features integrated accessory mounts so you can use fenders, aero cable management, and a performance fit.

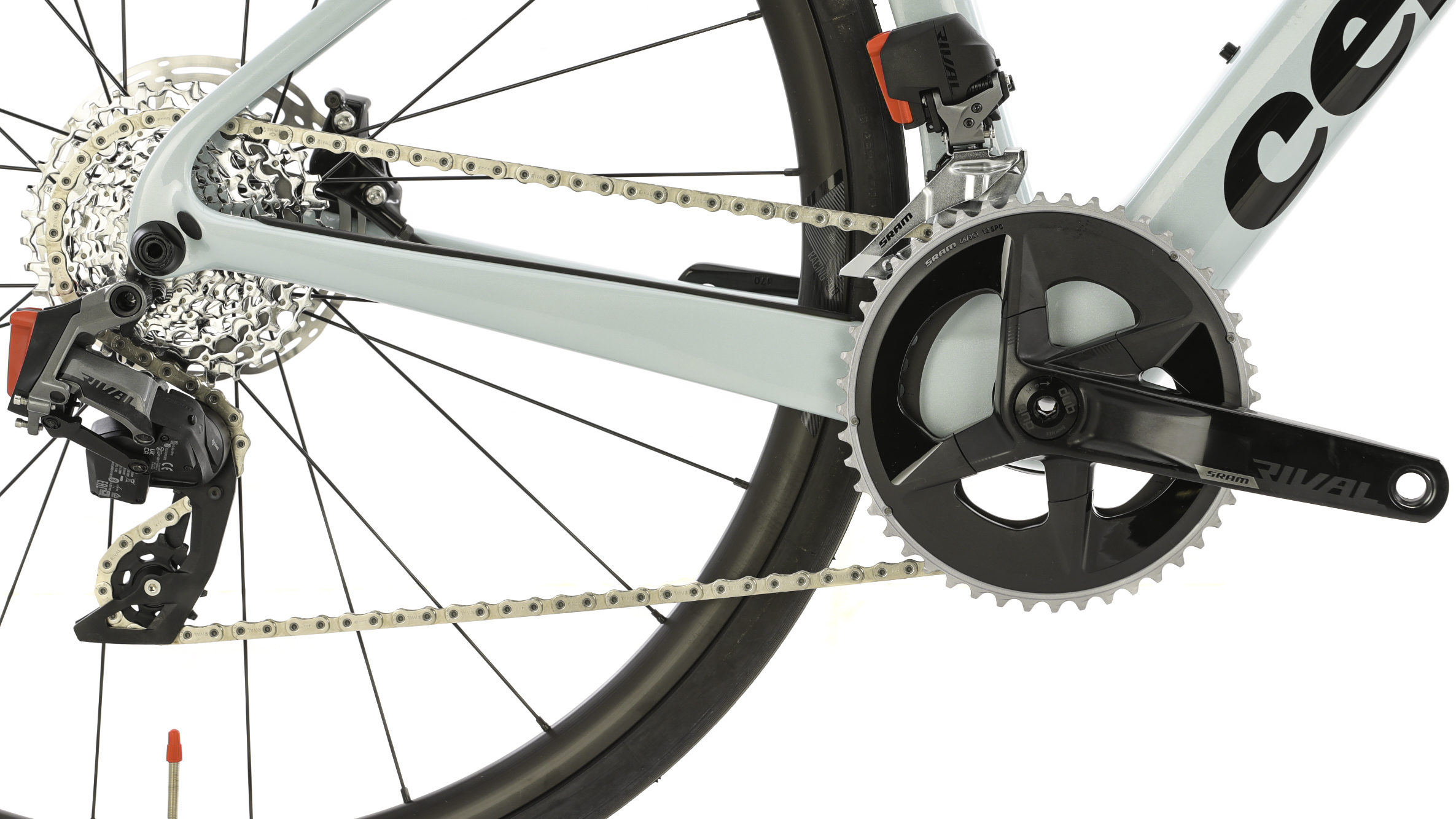

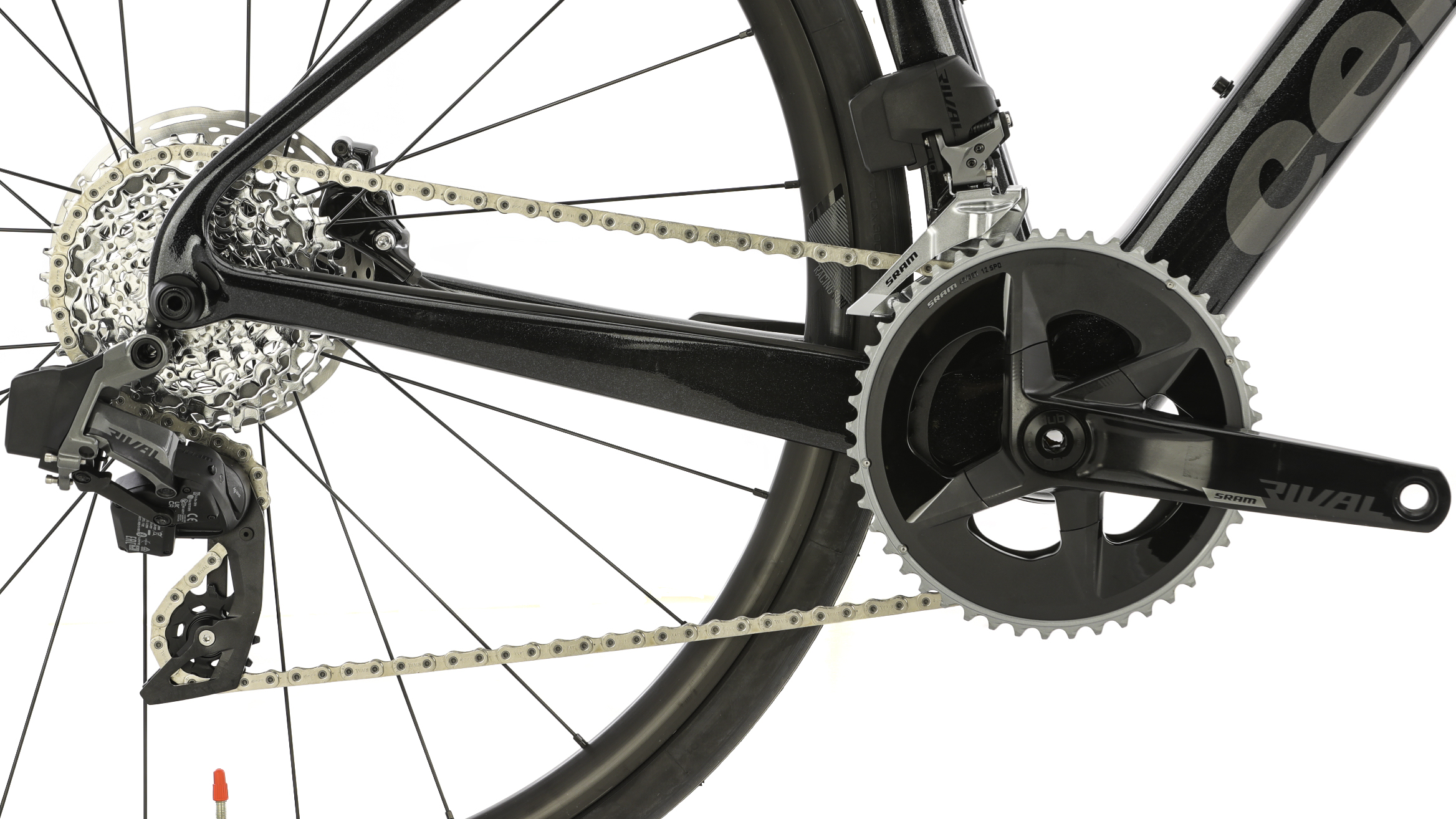

The Rival eTap AXS version of the Cervelo Caledonia-5 comes with a SRAM Rival eTap AXS 2×12-speed wireless electronic drivetrain. With a 48/35T chainring combo up front and a 10-36T cassette on the rear, you’ll be able to tackle tall mountains, century rides, and weekend cruises to the coffee shop with ease. SRAM Rival hydraulic disc brakes provide excellent stopping power so you can descend with confidence. Fulcrum Racing 600 DB Rims are paired with Corsa N.EXT TLR G2.0 tires that roll over rough roads with ease and efficiency. This will be the perfect road bike for riders who want something highly versatile.
Features
- Carbon frame and fork that are lightweight and stiff
- Cervelo SP24 Carbon Seatpost helps reduce vibrations for a smoother ride
- SRAM Rival AXS 2×12-speed electronic drivetrain performs exceptionally well in a wide range of conditions
- SRAM Rival hydraulic disc brakes provide excellent stopping power
- Fulcrum Racing 600 DB Rims paired with Corsa N.EXT TLR G2.0 700x28c tires
| Frame | Carbon Fiber |
|---|---|
| Fork | Cervelo All-Carbon, Tapered Caledonia-5 Fork |
| Headset | FSA IS2 1-1/4″ x 1-1/2″ |
| Shifters | SRAM Rival AXS, 12-Speed |
| Front Derailleur | SRAM Rival AXS, 12-Speed |
| Rear Derailleur | SRAM Rival AXS, 12-Speed |
| Crankset | SRAM Rival, 48/35T DUB, 12-Speed |
| Bottom Bracket | SRAM DUB, BBright |
| Chain | SRAM Rival, 12-Speed |
| Cassette | SRAM Rival, 10-36T |
| Brakes | SRAM Rival Hydraulic Disc, SRAM Centerline Centerlock Rotors |
| Wheelset | Fulcrum Racing 600 DB, 12×100/12x142mm Cervelo Aero Thru-Axle Hubs |
| Tires | Corsa N.EXT TLR G2.0 700x28c |
| Handlebar | Cervelo HB13 Carbon, 31.8mm Clamp |
| Stem | Cervelo ST32 Alloy |
| Grips/Bar Tape | – |
| Seatpost | Cervelo SP24 Carbon |
| Seatclamp | Bolt-Type |
| Saddle | Prologo Dimension STN |
| Intended Use | Road |
Note: Components are subject to change without notice.
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 480 | 510 | 540 | 560 | 580 | 610 |
| B: Effective Top Tube | 502 | 522 | 543 | 565 | 581 | 598 |
| C: Stack | 505 | 530 | 555 | 580 | 605 | 630 |
| D: Reach | 360 | 369 | 378 | 387 | 396 | 405 |
| E: BB Height | – | – | – | – | – | – |
| F: BB Drop | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| G: Head Tube Length | 89.5 | 109.9 | 136 | 162.3 | 191.2 | 217.5 |
| H: Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| I: Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| J: Standover Height | 712 | 752 | 784 | 807 | 834 | 857 |
| K: Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 |
| L: Wheelbase | 982 | 984 | 995 | 1012 | 1030 | 1047 |
| Frame Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’3″ | 5’3″ – 5’6″ | 5’6″ – 5’9″ | 5’9″ – 6’0″ | 6’0″ – 6’4″ | 6’4″ – 6’7″ |
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 18.9 | 20.1 | 21.3 | 22.0 | 22.8 | 24.0 |
| B: Effective Top Tube | 19.8 | 20.6 | 21.4 | 22.2 | 22.9 | 23.5 |
| C: Stack | 19.9 | 20.9 | 21.9 | 22.8 | 23.8 | 24.8 |
| D: Reach | 14.2 | 14.5 | 14.9 | 15.2 | 15.6 | 15.9 |
| E: BB Height | – | – | – | – | – | – |
| F: BB Drop | 3.0 | 3.0 | 2.9 | 2.9 | 2.8 | 2.8 |
| G: Head Tube Length | 3.5 | 4.3 | 5.4 | 6.4 | 7.5 | 8.6 |
| H: Head Tube Angle | 70.5 ° | 71.5 ° | 72.0 ° | 72.0 ° | 72.0 ° | 72.0 ° |
| I: Seat Tube Angle | 74.5 ° | 74.0 ° | 73.5 ° | 73.0 ° | 73.0 ° | 73.0 ° |
| J: Standover Height | 28.0 | 29.6 | 30.9 | 31.8 | 32.8 | 33.7 |
| K: Chainstay Length | 16.3 | 16.3 | 16.3 | 16.3 | 16.3 | 16.3 |
| L: Wheelbase | 38.7 | 38.7 | 39.2 | 39.8 | 40.6 | 41.2 |
| Frame Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’3″ | 5’3″ – 5’6″ | 5’6″ – 5’9″ | 5’9″ – 6’0″ | 6’0″ – 6’4″ | 6’4″ – 6’7″ |
