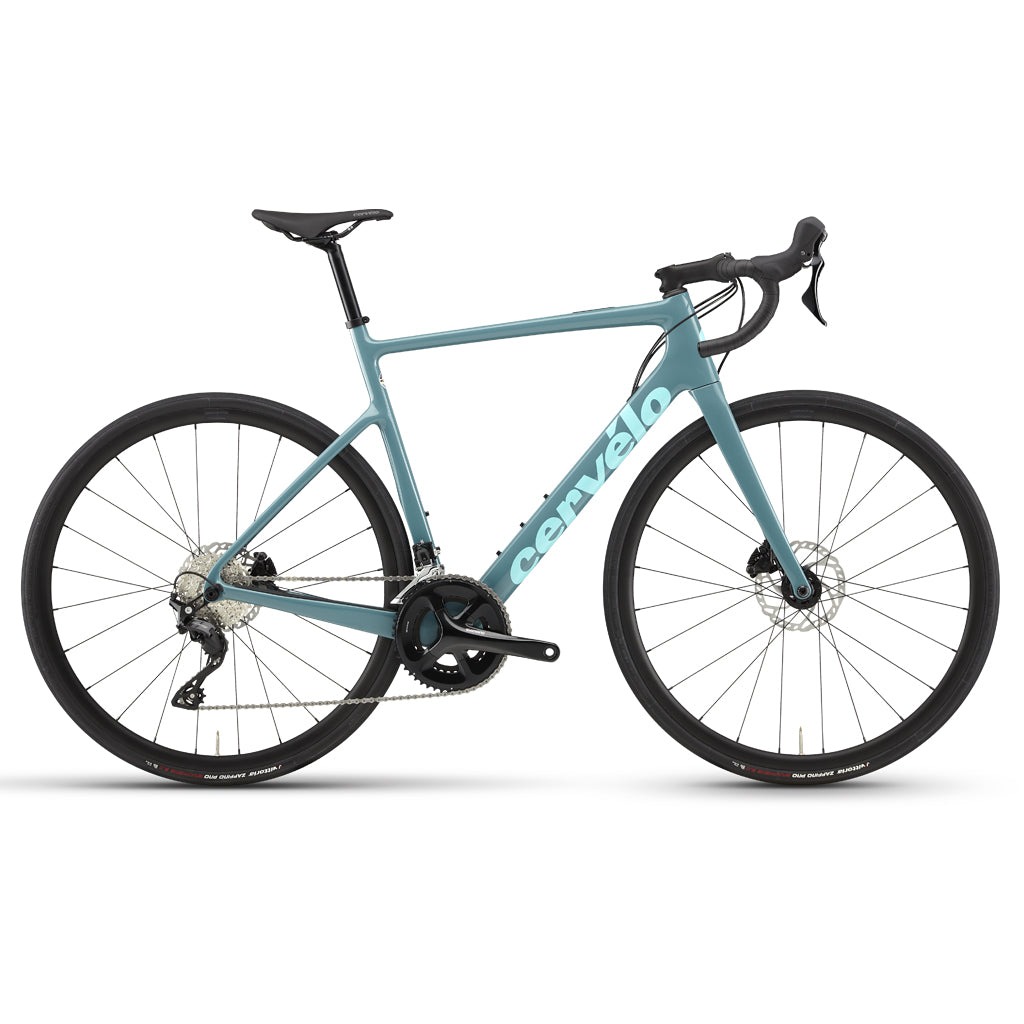

Cervelo Caledonia 105 12-Speed Bike
The Bike For The Way Riders Ride
Road bikes are all about being lightweight and stiff so you can climb efficiently and sprint without any flex in your frame. The Cervelo Caledonia 105 12-Speed Bike is made for riders who are looking for bikes to handle long distances, high pace, no limits, and offer maximum fun. The Caledonia uses a carbon fiber frame and carbon fiber fork. The frame features a removable front derailleur mount that is made from high-strength aluminum alloy and attaches to the frame with two countersunk screws. The frame also features integrated accessory mounts so you can use fenders, and has clearance for up to 34mm tires or 31mm tires with fenders.
The 105 version of the Cervelo Caledonia comes with a Shimano 2×12-speed drivetrain. With a 50/34T chainring combo up front and an 11-34T cassette on the rear, you’ll be able to tackle tall mountains, century rides, and weekend cruises to the coffee shop with ease. Shimano 105 hydraulic disc brakes provide excellent stopping power so you can descend with confidence. Alex Boondocks 5 Rims are paired with Zaffiro Pro V G2.0 700x30c tires that roll over rough roads with ease and help reduce vibrations. This will be the perfect road bike for riders who want something highly versatile.
Features
- Carbon frame and fork that are lightweight and stiff
- Clearance for up to 700x34c tires or 700x31c with fenders
- Shimano 105 2×12-speed drivetrain performs well in a wide-range of conditions
- Shimano 105 hydraulic disc brakes provide excellent stopping power
- Alex Boondocks 5 Rims paired with Zaffiro Pro V G2.0 700x30c tires
| Frame | Carbon Fiber |
|---|---|
| Fork | Cervelo All-Carbon, Tapered Caledonia Fork |
| Headset | FSA IS2 1-1/8″ x 1-1/2″ |
| Shifters | Shimano 105, R7120, 12-Speed |
| Front Derailleur | Shimano 105 R7100, 12-Speed |
| Rear Derailleur | Shimano 105 R7100, 12-Speed |
| Crankset | Shimano FC-RS520, 50/34T, 12-Speed |
| Bottom Bracket | FSA BBright Thread Together, 24mm Spindle |
| Chain | Shimano M7100, 12-Speed |
| Cassette | Shimano 105, 11-34T |
| Brakes | Shimano 105 Hydraulic Disc, Shimano RT66 6-Bolt Rotors |
| Wheelset | Alexrims Boondocks 5, 12×100/12x142mm Hubs |
| Tires | Zaffiro Pro V G2.0 700x30c |
| Handlebar | Cervelo Alloy, 31.8mm Clamp |
| Stem | Cervelo ST27 Alloy |
| Grips/Bar Tape | – |
| Seatpost | Cervelo Alloy 27.2, 15mm Offset |
| Seatclamp | Bolt-Type |
| Saddle | Cervelo Saddle |
| Intended Use | Road |
Note: Components are subject to change without notice.
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 480 | 510 | 540 | 560 | 580 | 610 |
| B: Effective Top Tube | 502 | 522 | 543 | 565 | 581 | 598 |
| C: Stack | 505 | 530 | 555 | 580 | 605 | 630 |
| D: Reach | 360 | 369 | 378 | 387 | 396 | 405 |
| E: BB Height | – | – | – | – | – | – |
| F: BB Drop | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| G: Head Tube Length | 89.5 | 109.9 | 136 | 162.3 | 191.2 | 217.5 |
| H: Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| I: Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| J: Standover Height | 701 | 741 | 773 | 796 | 823 | 847 |
| K: Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 |
| L: Wheelbase | 982 | 984 | 995 | 1012 | 1030 | 1047 |
| Frame Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’3″ | 5’3″ – 5’6″ | 5’6″ – 5’9″ | 5’9″ – 6’0″ | 6’0″ – 6’4″ | 6’4″ – 6’7″ |
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 18.9 | 20.1 | 21.3 | 22.0 | 22.8 | 24.0 |
| B: Effective Top Tube | 19.8 | 20.6 | 21.4 | 22.2 | 22.9 | 23.5 |
| C: Stack | 19.9 | 20.9 | 21.9 | 22.8 | 23.8 | 24.8 |
| D: Reach | 14.2 | 14.5 | 14.9 | 15.2 | 15.6 | 15.9 |
| E: BB Height | – | – | – | – | – | – |
| F: BB Drop | 3.0 | 3.0 | 2.9 | 2.9 | 2.8 | 2.8 |
| G: Head Tube Length | 3.5 | 4.3 | 5.4 | 6.4 | 7.5 | 8.6 |
| H: Head Tube Angle | 70.5 ° | 71.5 ° | 72.0 ° | 72.0 ° | 72.0 ° | 72.0 ° |
| I: Seat Tube Angle | 74.5 ° | 74.0 ° | 73.5 ° | 73.0 ° | 73.0 ° | 73.0 ° |
| J: Standover Height | 27.6 | 29.2 | 30.4 | 31.3 | 32.4 | 33.3 |
| K: Chainstay Length | 16.3 | 16.3 | 16.3 | 16.3 | 16.3 | 16.3 |
| L: Wheelbase | 38.7 | 38.7 | 39.2 | 39.8 | 40.6 | 41.2 |
| Frame Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’3″ | 5’3″ – 5’6″ | 5’6″ – 5’9″ | 5’9″ – 6’0″ | 6’0″ – 6’4″ | 6’4″ – 6’7″ |
