Bold Linkin LT Bike
Pinnacle of Innovation

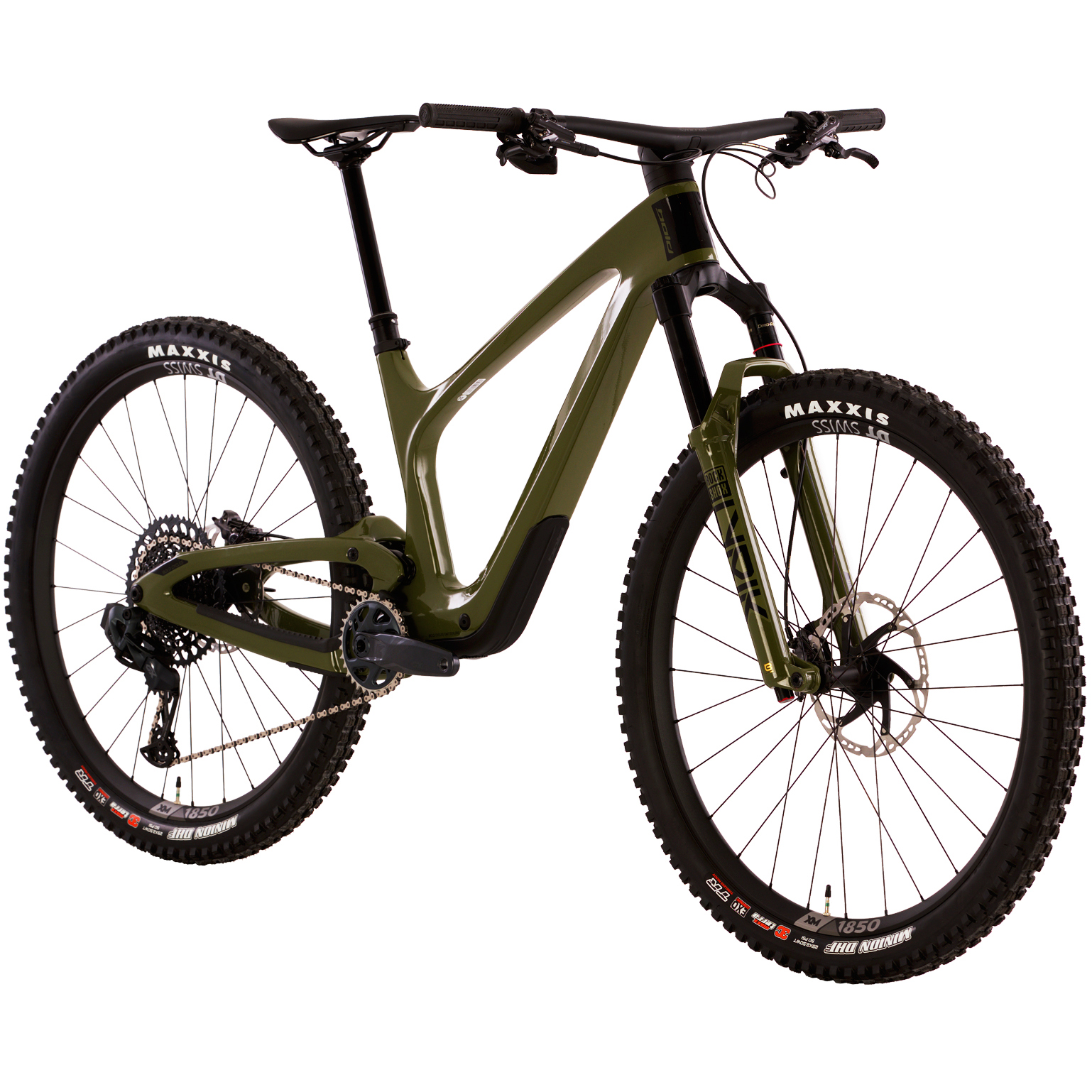

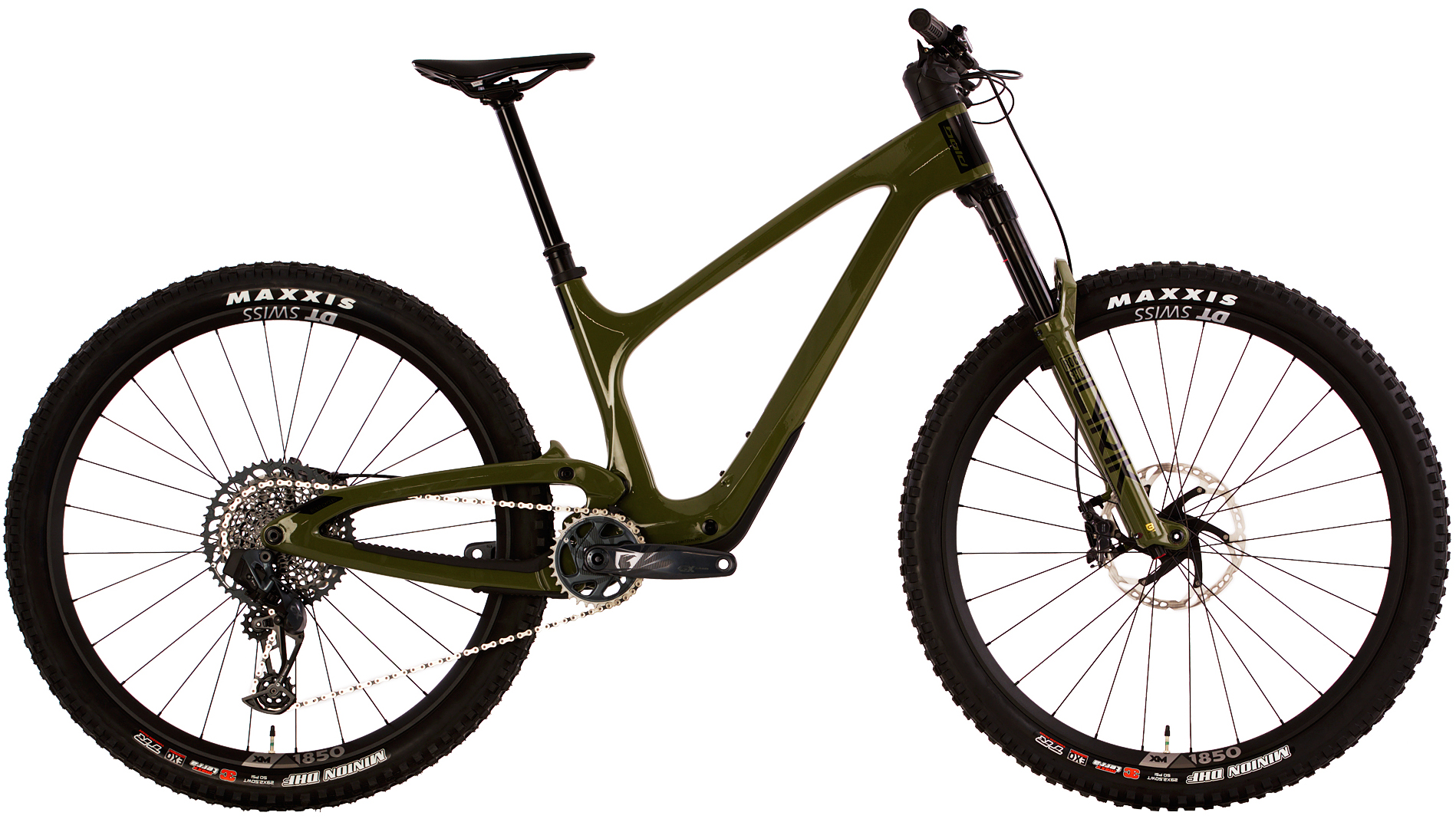

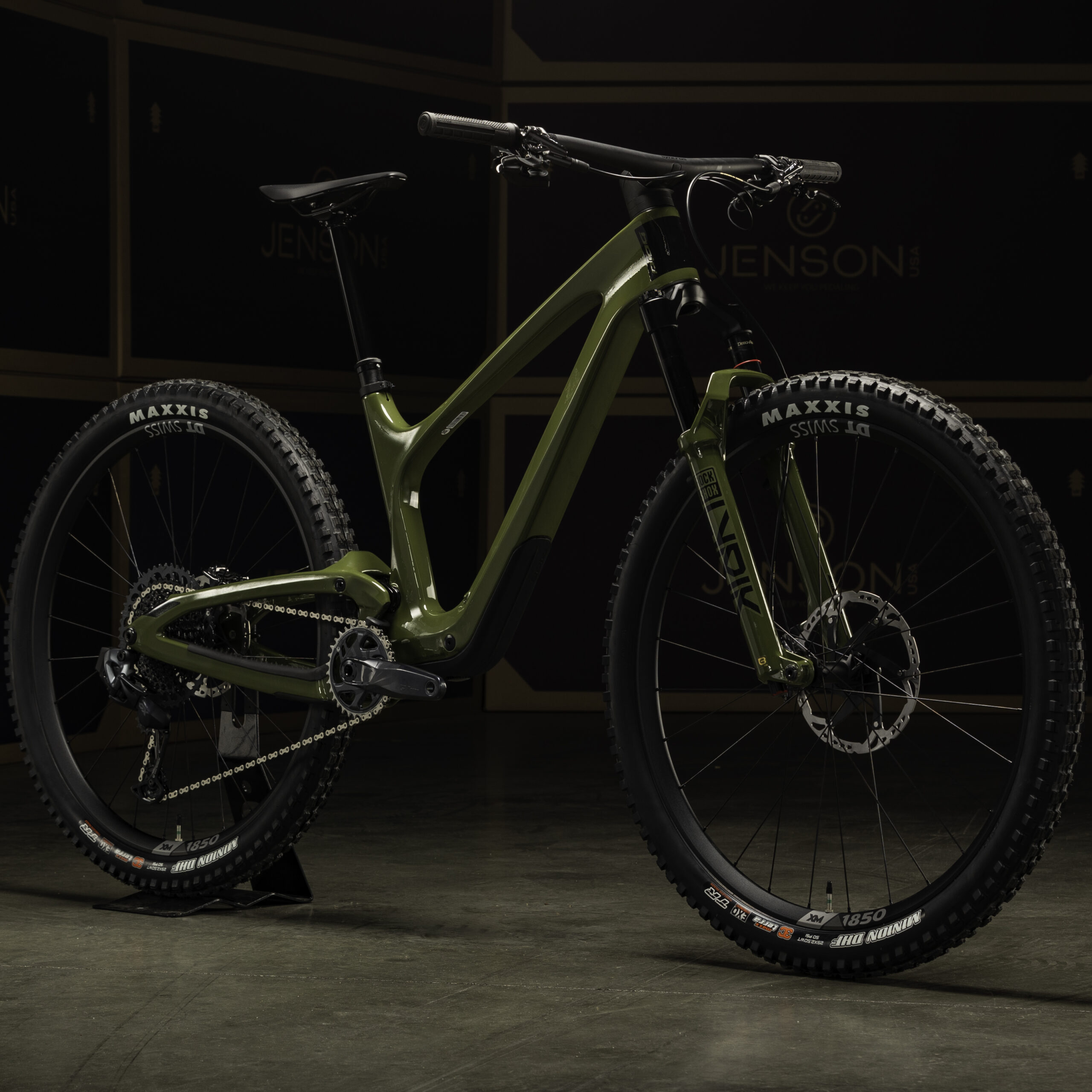

All-mountain bikes are perfect for climbing, descending, and all-around aggressive riding. They have longer suspension travel than XC and trail bikes making them perfectly balanced bikes. The Bold Linkin LT Bike is focused on technical and aesthetic details to emphasize its industry-leading innovation and design. The Carbon HMX frame uses 150mm of travel on the rear and 160mm of travel on the front. The frame has Integrated Suspension Technology, internal cable routing, a water bottle cage mount, integrated frame protection, Boost hub spacing, and a Universal Derailleur Hanger Interface.
The LT version of the Bold Linkin comes with a SRAM GX AXS Eagle 12-speed wireless electronic drivetrain. This includes a cassette that has a hill-crushing 10-52T gear range that makes climbing and pedaling through demanding terrain much easier. Shimano XT M8120 4-piston hydraulic disc brakes provide exceptional stopping power so you can descend with confidence. DT Swiss XM-1850 Spline wheels are paired with Maxxis Minion tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the Syncros Duncan Dropper Post, you’ll be able to quickly lift and lower your saddle with the press of a lever.
Features
- Carbon HMX Frame with Integrated Suspension Technology, internal cable routing, a water bottle cage mount, integrated frame protection, Boost hub spacing, and a Universal Derailleur Hanger Interface
- SRAM GX AXS Eagle 12-speed drivetrain performs exceptionally well in the most demanding riding conditions
- Shimano XT 4-piston hydraulic disc brakes provide superior stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- Syncros Duncan Dropper Post quickly lifts and lowers your saddle with the press of a lever
| Frame | Carbon HMX, Integrated Suspension Technology |
|---|---|

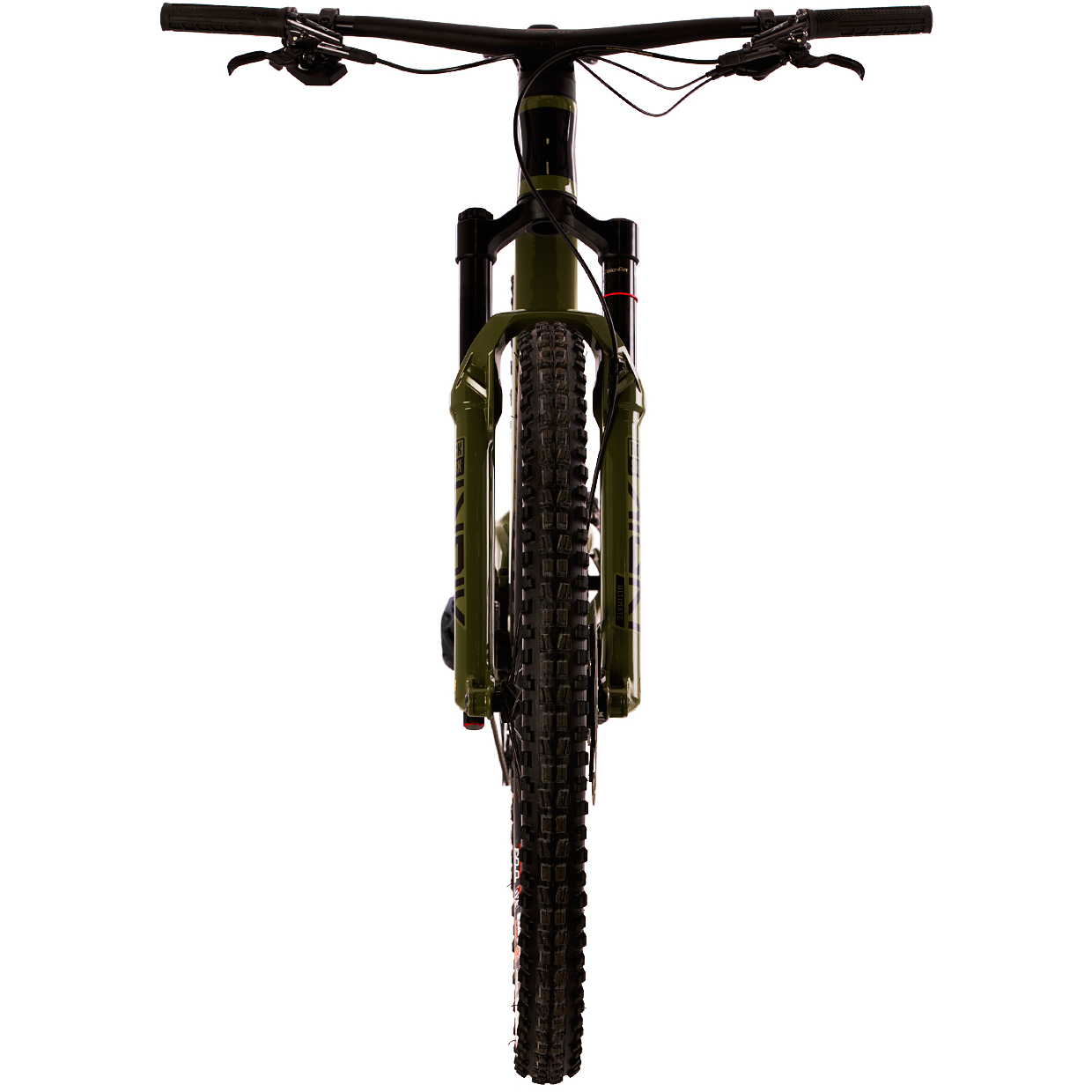

| Fork | RockShox Lyrik Ultimate Air, Charger 3 Damper, 44mm Offset, 160mm Travel |
| Rear Shock | Fox Nude 5 RLC3 Trunnion, 185x55mm |
| Headset | Syncros ZS56/28.6 – ZS56/40 MTB |
| Shifters | SRAM GX AXS Eagle Rocker Controller, 12-Speed |
| Front Derailleur | Absolutely Not |

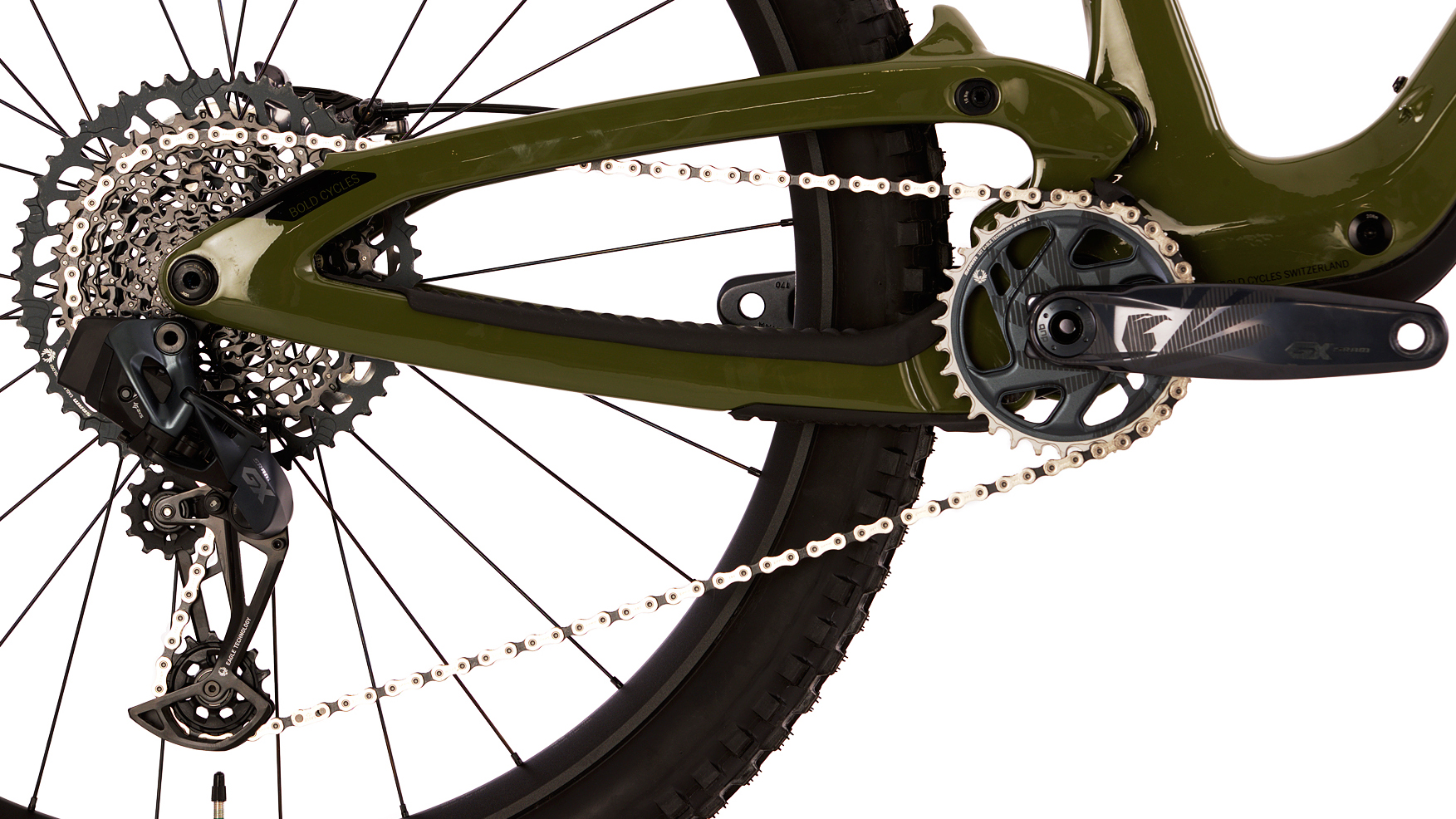

| Rear Derailleur | SRAM GX Eagle AXS Wireless Electronic, 12-Speed |

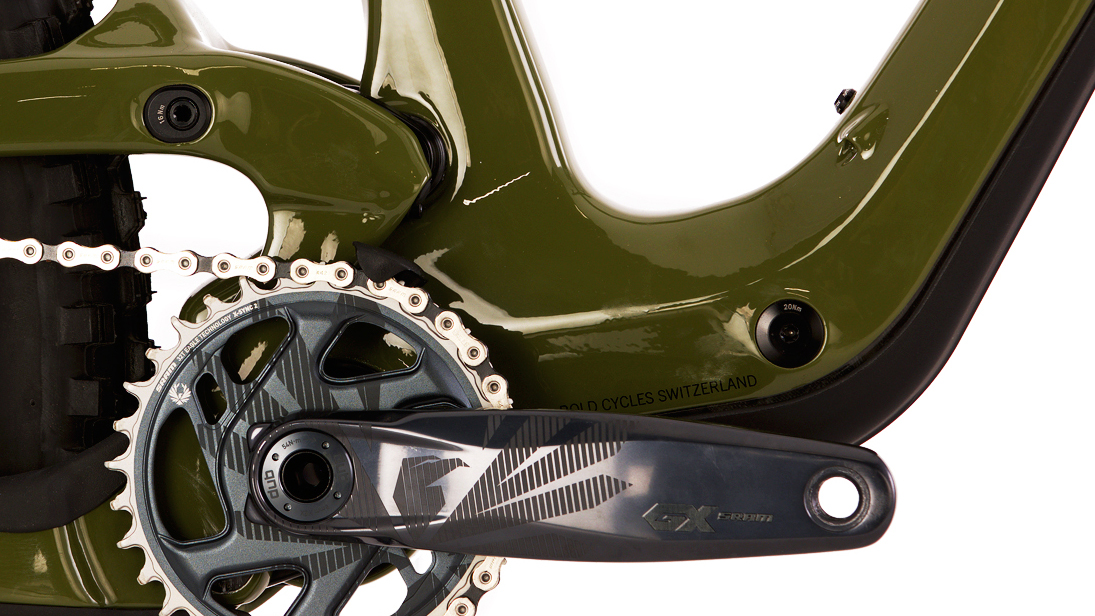

| Crankset | SRAM GX Eagle DUB, 32T |
| Bottom Bracket | SRAM DUB PF92 MTB Wide |
| Chain | SRAM CN GX Eagle, 12-Speed |
| Cassette | SRAM XG1275, 10-52T |
| Brakes | Shimano XT M8120 4-Piston, Shimano SM-RT76 203/180mm Rotors |
| Wheelset | DT Swiss XM-1850 Spline, 30mm Tubeless Rims, Boost Hubs, XD Driver |
| Tires | Maxxis Minion DHF 29×2.5″, 60TPI Tubeless-Ready, EXO |
| Handlebar | Syncros Hixon iC Carbon, 780mm Wide |
| Stem | Syncros |
| Grips/Bar Tape | Syncros Endurance Lock-On Grips |
| Seatpost | Syncros Duncan Dropper Post, S:170, M/L/XL:200mm Travel |
| Seatclamp | Bolt-Type |
| Saddle | Syncros Tofino 1.5 Regular, Titanium Rails |
| Intended Use | All-Mountain, Trail |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 365 | 395 | 425 | 455 |
| B: Effective Top Tube | 548 | 597 | 631 | 664 |
| C: Stack | 605 | 622 | 635 | 649 |
| D: Reach | 422 | 452 | 482 | 512 |
| E: BB Height | 341 | 341 | 343 | 343 |
| F: BB Drop | 32 | 32 | 32 | 32 |
| G: Head Tube Length | 90 | 105 | 120 | 135 |
| H: Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| I: Seat Tube Angle | 77.5 ° | 76.8 ° | 76.8 ° | 76.8 ° |
| J: Standover Height | 689 | 720 | 746 | 772 |
| K: Chainstay Length | 433 | 434 | 434 | 434 |
| L: Wheelbase | 1183 | 1225 | 1261 | 1298 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 40 mm | 40 mm | 40 mm | 40 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 14.4 | 15.6 | 16.7 | 17.9 |
| B: Effective Top Tube | 21.6 | 23.5 | 24.8 | 26.1 |
| C: Stack | 23.8 | 24.5 | 25.0 | 25.6 |
| D: Reach | 16.6 | 17.8 | 19.0 | 20.2 |
| E: BB Height | 13.4 | 13.4 | 13.5 | 13.5 |
| F: BB Drop | 1.3 | 1.3 | 1.3 | 1.3 |
| G: Head Tube Length | 3.5 | 4.1 | 4.7 | 5.3 |
| H: Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| I: Seat Tube Angle | 77.5 ° | 76.8 ° | 76.8 ° | 76.8 ° |
| J: Standover Height | 27.1 | 28.3 | 29.4 | 30.4 |
| K: Chainstay Length | 17.0 | 17.1 | 17.1 | 17.1 |
| L: Wheelbase | 46.6 | 48.2 | 49.6 | 51.1 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 40 mm | 40 mm | 40 mm | 40 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
